DTC Logic

DTC DETECTION LOGIC

DTC No.	CONSULT screen terms (Trouble diagnosis content)	DTC detecting condition	Possible cause
P0116	ECT SEN/CIRC (Engine coolant temperature sensor 1 circuit range/performance)	The comparison result of signals transmitted to ECM from each temperature sensor (IAT sensor, ECT sensor, FTT sensor, and EOT sensor) shows that the voltage signal of the ECT sensor is higher/lower than that of other temperature sensors when the engine is started with its cold state.	Harness or connectors (High or low resistance in the ECT sensor circuit) ECT sensor

DTC CONFIRMATION PROCEDURE

1.INSPECTION START

Is it necessary to erase permanent DTC? YES >> GO TO 3.

NO >> GO TO 2.

2.PERFORM COMPONENT FUNCTION CHECK

Perform component function check. Refer to EC-197, "Component Function Check".

NOTE:

Use the component function check to check the overall function of the ECT sensor circuit. During this check, a 1st trip DTC might not be confirmed.

Is the inspection result normal? YES >> INSPECTION END

NO >> Proceed to EC-197, "Diagnosis Procedure".

3.PRECONDITIONING

If DTC CONFIRMATION PROCEDURE has been previously conducted, always perform the following procedure before conducting the next test.

Turn ignition switch OFF and wait at least 10 seconds.
Turn ignition switch ON.
Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:

Before performing the following procedure, do not add fuel.
Before performing the following procedure, check that fuel level is between 1/4 and 4/4.
Before performing the following procedure, confirm that battery voltage is 11 V or more at idle.

>> GO TO 4.

4.PERFORM DTC CONFIRMATION PROCEDURE

Move the vehicle to a cool place.

NOTE:

Cool the vehicle in an environment of ambient air temperature between −10В°C (14В°F) and 35В°C (95В°F).

Turn ignition switch OFF and leave the vehicle for 12 hours.

CAUTION:

Never turn ignition switch ON during this procedure.

NOTE:

The vehicle must be cooled with the food open.

Start engine and let it idle for 5 minutes or more.

CAUTION:

Never turn ignition switch OFF during idling.

Check 1st trip DTC.

Is 1st trip DTC detected? YES >> Proceed to EC-197, "Diagnosis Procedure".

NO >> INSPECTION END

Component Function Check

1.CHECK ENGINE COOLANT TEMPERATURE (ECT) SENSOR

Turn ignition switch OFF.
Disconnect ECT sensor harness connector.
Remove ECT sensor. Refer to CO-24, "Exploded View".

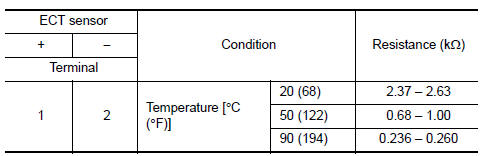

Check resistance between ECT sensor terminals by heating with hot water as shown in the figure

Is the inspection result normal?

Is the inspection result normal? YES >> Check intermittent incident. Refer to GI-39, "Intermittent Incident".

NO >> Proceed to EC-197, "Diagnosis Procedure".

Diagnosis Procedure

1.CHECK ENGINE COOLANT TEMPERATURE (ECT) SENSOR

Check ECT sensor. Refer to EC-197, "Component Inspection".

Is the inspection result normal? YES >> Check intermittent incident. Refer to GI-39, "Intermittent Incident".

NO >> Replace ECT sensor. Refer to CO-24, "Exploded View".

Component Inspection

1.CHECK ENGINE COOLANT TEMPERATURE (ECT) SENSOR

Turn ignition switch OFF
Disconnect ECT sensor harness connector.
Remove ECT sensor.

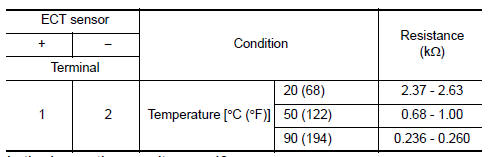

Check resistance between ECT sensor terminals by heating with hot water as shown in the figure.

Is the inspection result normal?

Is the inspection result normal? YES >> INSPECTION END

NO >> Replace engine coolant temperature sensor. Refer to CO-24, "Exploded View"
