INTAKE MANIFOLD RUNNER CONTROL : System Description

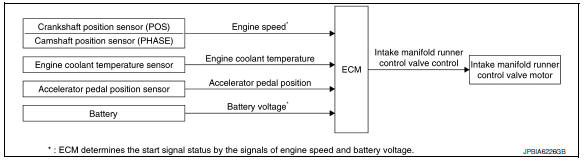

SYSTEM DIAGRAM

SYSTEM DESCRIPTION
Intake manifold runner control valve has a valve portion in the intake passage of each cylinder.
While idling and during low engine coolant temperature, the intake manifold runner control valve closes. Thus the velocity of the air in the intake passage increases, promoting the vaporization of the fuel and producing a intake manifold runner in the combustion chamber.
Because of this operation, this system tends to increase the burning speed of the gas mixture, improve exhaust emission, and increase the stability in running conditions.
Also, except when idling and during low engine coolant temperature, this system opens the intake manifold runner control valve.
In this condition, this system tends to increase power by improving intake efficiency via reduction of intake flow resistance.
The intake manifold runner control valve is operated by the ECM.
Exhaust valve timing control
Intake manifold tuning systemFront disc brake
BRAKE PAD
BRAKE PAD : Inspection
PAD WEAR
Check brake pad thickness from an inspection hole on caliper body.
Check using a scale if necessary
Wear limit thickness : Refer to BR-55, "Front Disc
Brake".
DISC ROTOR
DISC ROTOR : Inspection
APPEARANCE
Check surface of disc rotor ...
Wiring diagram
Tire pressure monitoring system
With intelligent key
WITH INTELLIGENT KEY : Wiring Diagram
Without intelligent key
WITHOUT INTELLIGENT KEY : Wiring Diagram
...
System description
COMPONENT PARTS
Component Parts Location
Transaxle assembly
STRUCTURE AND OPERATION
Sectional View
3rd input gear
3rd-4th synchronizer hub assembly
4th input gear
5th input gear
5th-6th synchronizer hub assembly
6th input gear
Transaxle case
6th main gear
5 ...
