Nissan Sentra Service Manual: Inside mirror
Exploded view

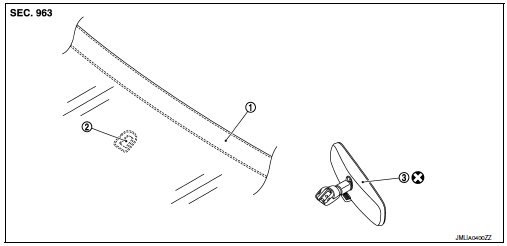

Manual mirror
- Windshield glass
- Inside mirror base
- Inside mirror assembly

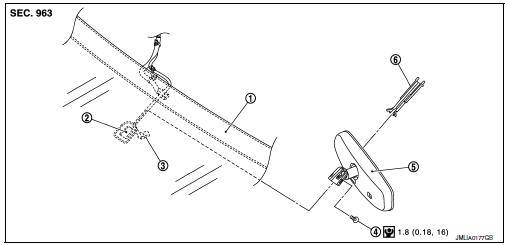

Auto anti-dazzle mirror
- Windshield glass
- Inside mirror base
- Harness connector
- Mirror screw
- Inside mirror assembly
- Inside mirror cover
Removal and installation
Manual mirror
Removal
- Insert a suitable tool (A) under the inside mirror (1).
- Slide the inside mirror upward while pushing down on the pawl.
Caution:
- Do not reuse the inside mirror disassembled from inside mirror base.
- Do not use excessive force to remove the inside mirror.
- Wrap a suitable tool with a shop cloth to avoid damage to the windshield glass.
Installation
Installation is in the reverse order of removal.
Caution:
When installing the inside mirror on the mirror base, be sure to push the pawl until it is tightly connected to the mirror base.
Auto anti-dazzle mirror
Removal
- Remove the mirror screw from the mirror base.
- Disconnect the harness connector from the mirror.
- Slide the mirror upward to remove.
Installation
Installation is in the reverse order of removal.
Door mirror
Exploded view
Door mirror cover
(with side turn signal lamp)
Door mirror housing
Door mirror actuator
Glass mirror
Door mirror cover
(without side turn signal lamp)
: Pawl
Doo ...
