Nissan Sentra Service Manual: Front grille

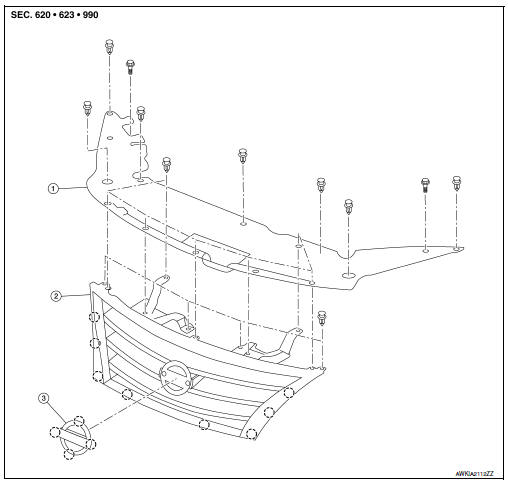

Exploded view
- Core support cover
- Front grille
- Emblem
Pawl
Removal and installati
on
REMOVAL
- Remove core support cover bolts (A), clips (B) and core support cover (1).
- Apply protective tape (A) to protect the components from damage.
- Remove the front grille clips (A).
- Release pawls from back side while pulling front grille toward vehicle front and remove front grille.
: Pawl
- Remove emblem from front grille (if necessary).
INSTALLATION
Installation is in the reverse order of removal.
