Nissan Sentra Service Manual: Rear bumper

Nissan Sentra Service Manual / Body exterior, doors, roof & vehicle security / Exterior / Removal and installation / Rear bumper

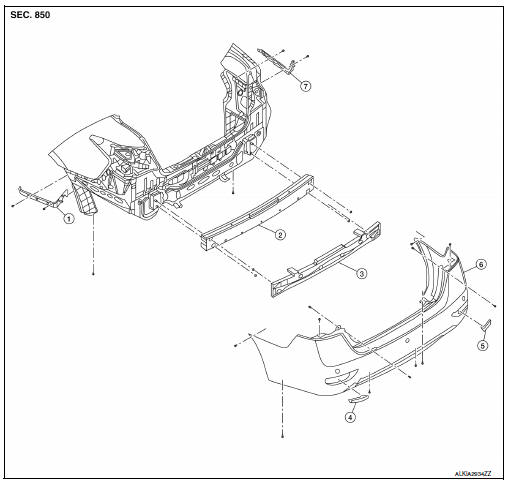

Exploded view

Rear bumper side bracket (LH)
Rear bumper reinforcement
Rear bumper energy absorber
Rear bumper fascia reflector (LH)
Rear bumper fascia reflector (RH)
Rear bumper fascia
Rear bumper side bracket (RH)

Removal and installation Pawl

Removal and installation

CAUTION:

Bumper fascia is made of resin. Use care when handling to prevent damage. Avoid contact with oily substances.

REMOVAL

Remove rear combination lamps (LH/RH). Refer to EXL-126, "Removal and Installation".
Remove the clips (A) (LH/RH) and bolts (B) (LH/RH) from the rear bumper fascia upper side.

Apply protective tape (A) to protect the components from damage on each side as shown.

Remove clips (A) (LH/RH) from rear bumper fascia lower side.

Remove bolts (A) (LH/RH) from rear bumper fascia lower side.

Remove rear bumper fascia screws (A) (LH/RH).

Release the rear bumper fascia from the rear bumper fascia side bracket on each side (LH/RH) as shown.

CAUTION: : Pawl

CAUTION:

When removing rear bumper fascia, two people are required as to avoid damaging.

Remove rear bumper fascia.
Remove the rear bumper fascia reflectors (LH/RH) from rear bumper fascia.
Remove rear bumper energy absorber.
Remove rear bumper side bracket screws and the rear bumper side brackets (LH/RH).

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

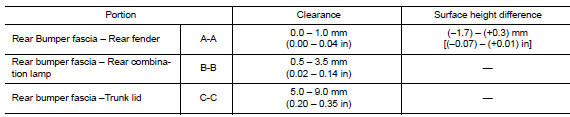

The following table shows the specified values for checking normal installation status.
Fitting adjustment cannot be performed.
