ENGINE PROTECTION CONTROL AT LOW ENGINE OIL PRESSURE : System Description

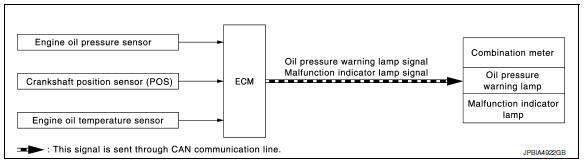

SYSTEM DIAGRAM

INPUT/OUTPUT SIGNAL CHART

INPUT/OUTPUT SIGNAL CHART

Sensor	Input signal to ECM	ECM function	Actuator
Engine oil pressure sensor	Engine oil pressure	Engine protection control Oil pressure warning lamp signal Fuel cut control	Combination meter Oil pressure warning lamp
Crankshaft position sensor (POS)	Engine speed
Engine oil temperature sensor	Engine oil temperature

SYSTEM DESCRIPTION

The engine protection control at low engine oil pressure warns the driver of a decrease in engine oil pressure by the oil pressure warning lamp a before the engine becomes damaged.
When detecting a decrease in engine oil pressure at an engine speed less than 1,000 rpm, ECM transmits an oil pressure warning lamp signal to the combination meter.The combination meter turns ON the oil pressure warning lamp, according to the signal.

*: When detecting a normal engine oil pressure, ECM turns OFF the oil

*: When detecting a normal engine oil pressure, ECM turns OFF the oil pressure warning lamp.
