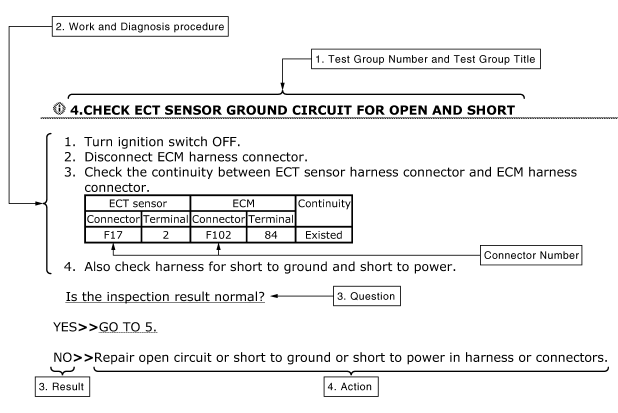

Test group number and test group title

Test group number and test group title are shown in the upper portion of each test group.

Work and diagnosis procedure

Start to diagnose a problem using procedures indicated in enclosed test groups.

Questions and results

Questions and required results are indicated in test group.

Action

Next action for each test group is indicated based on result of each question.

Description

NOTICE: Trouble diagnoses indicate work procedures required to diagnose problems effectively. Observe the following instructions before diagnosing. Before performing trouble diagnoses, read th ...
