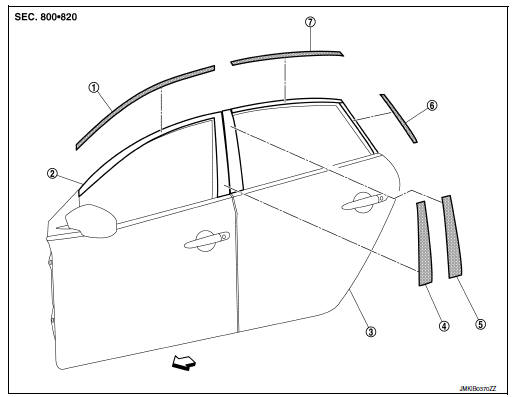

Exploded view

Front door sash upper tape
Front door assembly
Rear door assembly
Front door sash rear tape
Rear door sash front tape
Rear door sash rear tape
Rear door sash upper tape

Front door sash tape

FRONT DOOR SASH TAPE : Removal and Installation

REMOVAL

Heat door sash tape surface using a heat gun and peel door sash tape.

CAUTION:

Do not damage painted surface of door.

INSTALLATION

NOTE:

For installation position of door sash tape, refer to the position as shown.

Front door assembly
Front door sash tape
Front door sash rear tape

R. R end

D : 1.0 вЂ“ 3.0 mm (0.04 вЂ“ 0.12 in)

E : 3.5 mm (0.14 in)

F : 3.5 mm (0.14 in)

CAUTION:

Degrease front door assembly surface for sash tape.
Grit or dust on surface of sash tape may spoil exterior appearance if not removed. Clean the surface and check that no grit or dust remains before starting the operation.
Do not reuse blackout tape.

Affix door sash tape align blackout tape upper portion to rear door outer upper end.
Affix door sash tape (2) to door panel (3) by applying pressure using a squeegee (A) while peeling off release coated paper (1).

NOTE:

Peel release coated paper at distance of 10 вЂ“ 20 mm (0.39 вЂ“ 0.79 in) ahead (B) of squeegee and affix blackout paper.
To prevent any bubbles from forming, slightly lift the portion not yet affixed using a squeegee, so that portion dose not contact with panel surface. Apply pressure and affix at a low and constant speed using squeegee tilted at 40 вЂ“ 50В° angle (pushing direction) (C) 30 вЂ“ 45В° angle (pulling direction) (D).

For small radius portion of hemming part, gradually apply pressure and affix door sash tape 1 using squeegee (A) in 1 → 3 steps.

CAUTION:

Do not wash the vehicle with in 24 hours so as to keep adhesive dry.

Rear door sash tape

Rear door sash tape

REAR DOOR SASH TAPE : Removal and Installation

REMOVAL

Heat door sash tape surface using a heat gun and peel door sash tape.

CAUTION:

Do not damage painted surface of door.

INSTALLATION

NOTE:

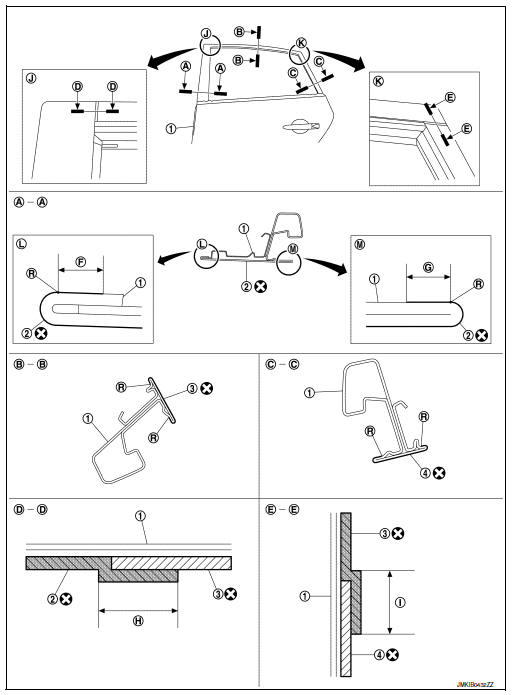

For installation position of door sash tape, refer to the position as shown.

Rear door assembly
Rear door sash rear tape
Rear door sash tape
Rear door sash rear tape

R. R end

F 3.0 mm (0.12 in)

G 3.5 mm (0.14 in)

H 1.0 вЂ“ 3.0 mm (0.04 вЂ“ 0.12 in)

I 1.0 вЂ“ 3.0 mm (0.04 вЂ“ 0.12 in)

CAUTION:

Degrease rear door assembly surface for door sash tape.
Grit or dust on surface of door sash tape may spoil exterior appearance if not removed. Clean the surface and check that no grit or dust remains before starting the operation.
Do not reuse door sash tape.

Affix door sash tape align door sash tape upper portion to rear door outer upper end.

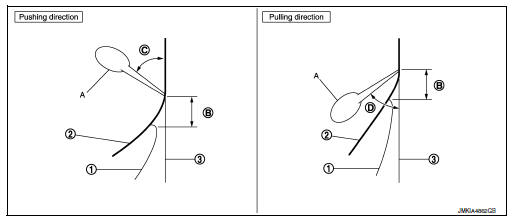

Affix door sash tape (2) to door panel (3) by applying pressure using a squeegee (A) while peeling off release coated paper (1).

NOTE:

Peel release coated paper at distance of 10 вЂ“ 20 mm (0.39 вЂ“ 0.79 in) ahead (B) of squeegee and affix blackout paper.
To prevent any bubbles from forming, slightly lift the portion, not yet affixed using squeegee, so that portion dose not contact with panel surface. Apply pressure and affix at a low and constant speed using squeegee tilted at 40 вЂ“ 50В° angle (pushing direction) (C) 30 вЂ“ 45В° angle (pulling direction) (D).

For small radius portion of hemming part, gradually apply pressure and affix door sash tape (1) using squeegee (A) in 1 → 3 steps.

CAUTION:

Do not wash the vehicle with in 24 hours so as to keep adhesive dry.
