Nissan Sentra Service Manual: Ground

Ground distribution

Main harness

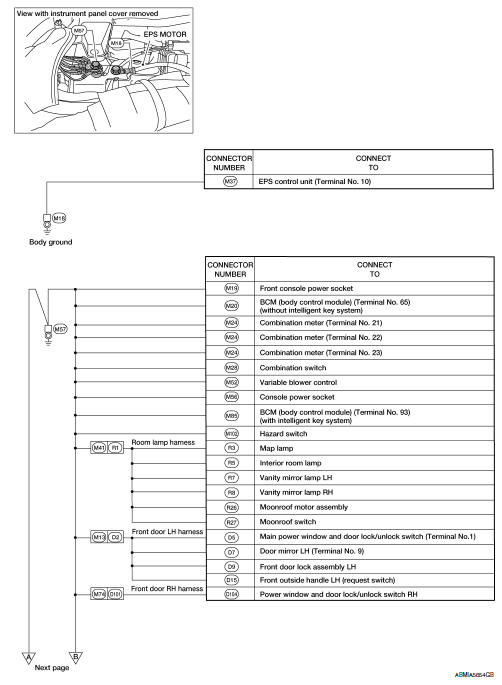

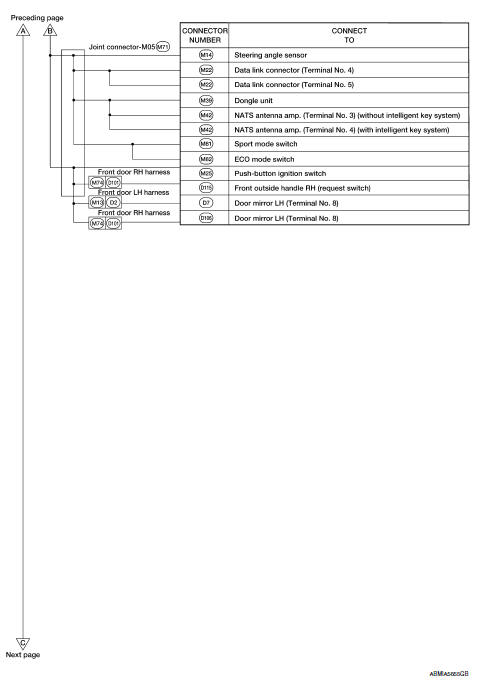

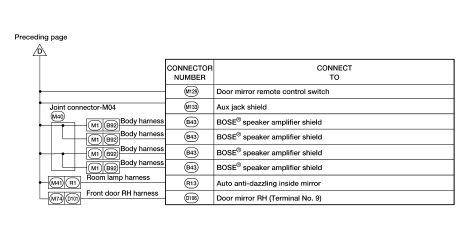

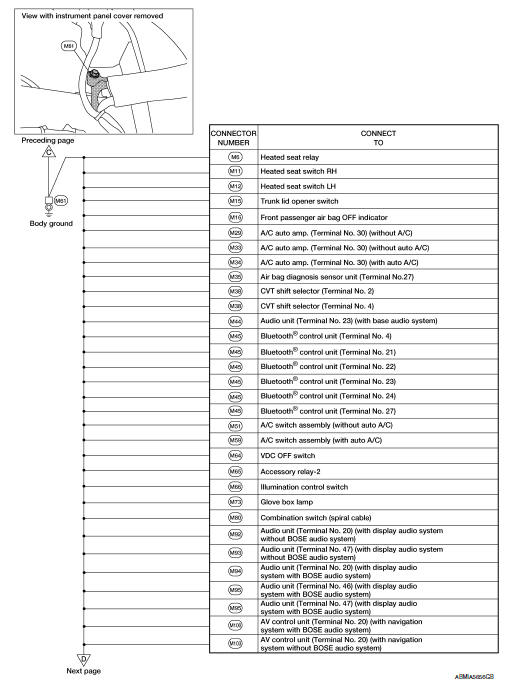

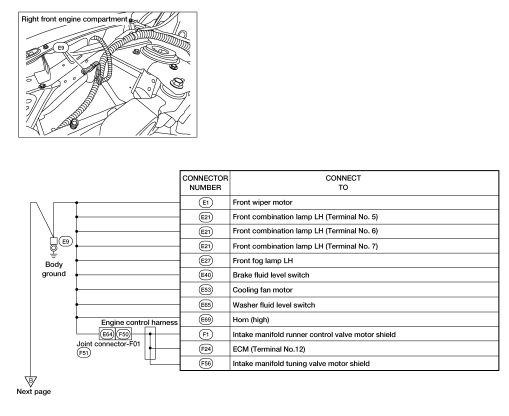

Engine room harness

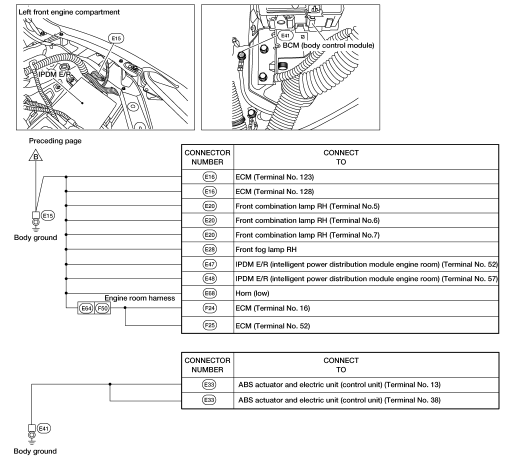

Engine room harness

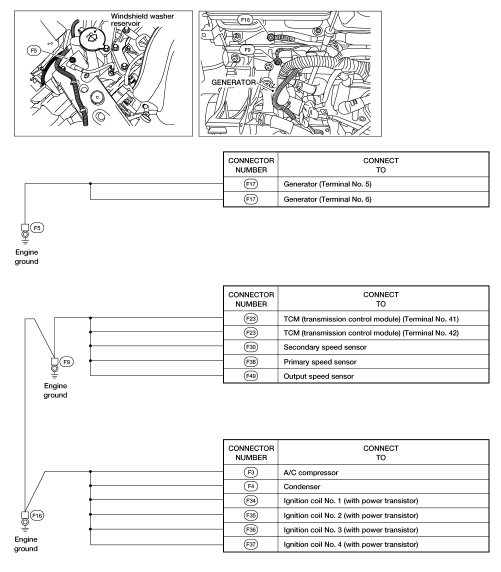

Engine control harness


Engine control harness

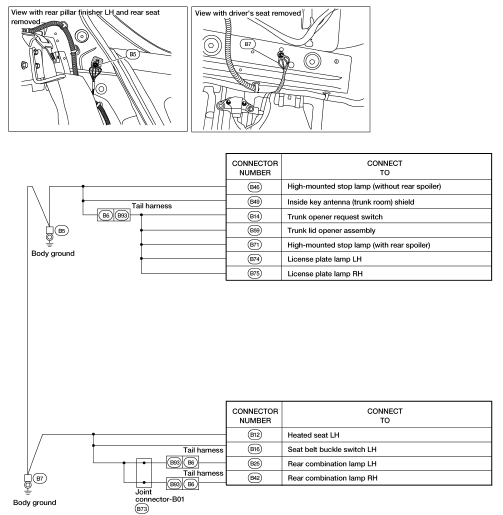

Body harness


Body harness

Electrical units location


Power supply routing circuit
Wiring Diagram — Battery Power Supply — Wiring Diagram — Accessory Power Supply — Wiring Diagram — Ignition Power Supp ...

Electrical units location
Electrical units location Engine compartment Passenger compartment Luggage compartment ...
