Diagnosis Description
AUTO ACTIVE TEST
Description
In auto active test, the IPDM E/R sends a drive signal to the following systems to check their operation.
Operation Procedure
NOTE:
Never perform auto active test in the following conditions.
NOTE:
When auto active test is performed with hood opened, sprinkle water on windshield beforehand.
NOTE:
Inspection in Auto Active Test
When auto active test is actuated, the following operation sequence is repeated 3 times.

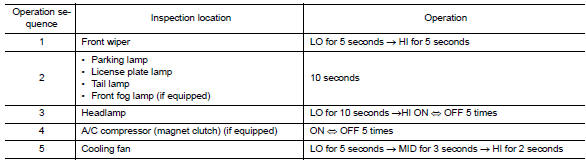

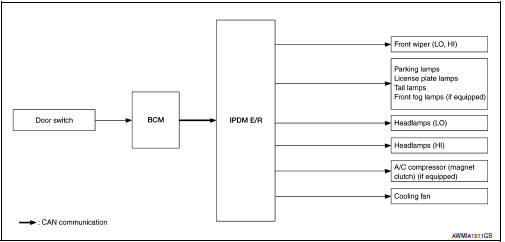

Concept of Auto Active Test

Therefore, the CAN communication line between IPDM E/R and BCM is considered normal if the auto active test starts successfully.

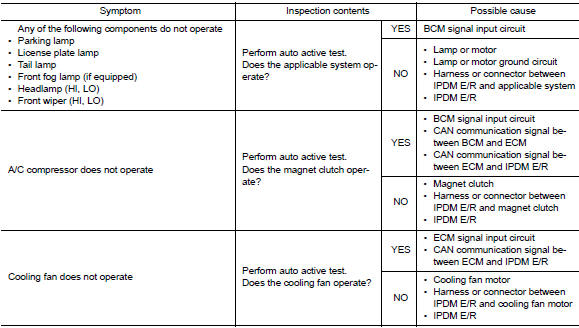

Diagnosis Chart in Auto Active Test

CONSULT Function (IPDM E/R)
APPLICATION ITEM
CONSULT performs the following functions via CAN communication with IPDM E/R.
| Direct Diagnostic Mode | Description |
| Ecu Identification | The IPDM E/R part number is displayed. |
| Self Diagnostic Result | The IPDM E/R self diagnostic results are displayed. |
| Data Monitor | The IPDM E/R input/output data is displayed in real time. |
| Active Test | The IPDM E/R activates outputs to test components. |
| CAN Diag Support Mntr | The result of transmit/receive diagnosis of CAN communication is displayed. |
ECU IDENTIFICATION
The IPDM E/R part number is displayed.
SELF DIAGNOSTIC RESULT
Refer to PCS-48, "DTC Index".
DATA MONITOR

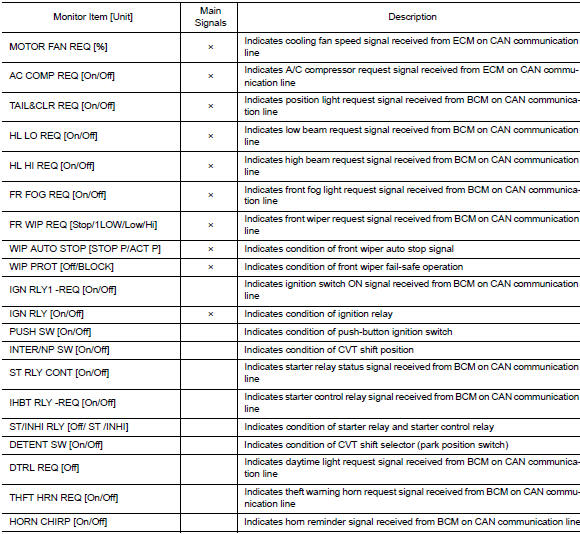

ACTIVE TEST


CAN DIAG SUPPORT MNTR
Refer to LAN-13, "CAN Diagnostic Support Monitor".
Diagnosis system (ipdm e/r) (with intelligent key system)
Ecu diagnosis informationEmission control information label
The emission control information label is attached
to the underside of the hood as shown.
Tire and loading information label
The cold tire pressure is shown on the Tire and
Loading Information label. The label is located as
shown.
Air conditioner specification label
