Nissan Sentra Service Manual: System description
Component parts
Body control system

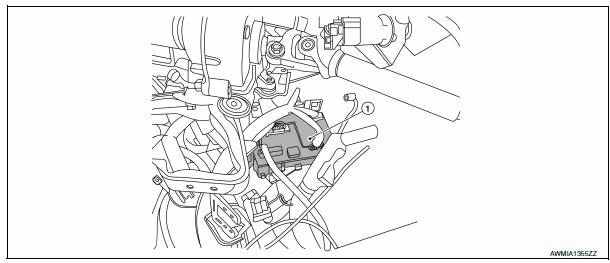

Body control system : component parts location
- BCM (view with instrument panel removed)
Combination switch reading system
Combination switch reading system : component parts location
- BCM (view with combination meter removed)
- Combination switch (lighting and turn signal) (without fog lamps)
- Combination switch (lighting and turn signal) (with fog lamps)
- Combination switch (wiper and washer)
Power consumption control system

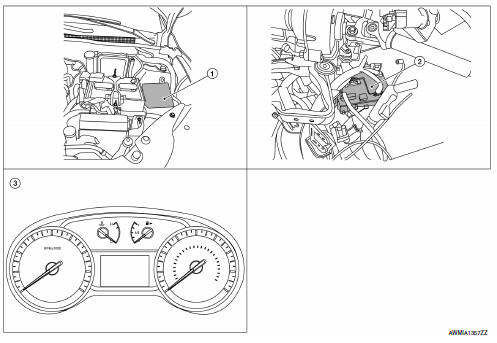

Power consumption control system : component parts location
- IPDM E/R
- BCM (view with instrument panel removed)
- Combination meter
Precaution
Precaution for supplemental restraint system (srs) "air bag" and "seat
belt pre-tensioner"
The supplemental restraint system such as “air bag” and “seat belt pre- ...
System
Body control system
Body control system : system description
OUTLINE
BCM (Body Control Module) controls the various electrical components. It
inputs the information required to
the control ...
