Component Function Check

1.CHECK COOLING FAN FUNCTION

With CONSULT


  1. Turn ignition switch ON.
  2. Perform “FAN” in “ACTIVE TEST” mode of “ENGINE” using CONSULT
  3. Check that cooling fan operates at low speed or high speed.

Without CONSULT


  1. Activate IPDM E/R auto active test and check cooling fan motors operation. Refer to PCS-9, "Diagnosis Description" (with intelligent key), or PCS-37, "Diagnosis Description" (without intelligent key).
  2. Check that cooling fan operates.

Is the inspection result normal? YES >> INSPECTION END

NO >> Proceed to EC-463, "Diagnosis Procedure".

Diagnosis Procedure

1.CHECK COOLING FAN MOTOR GROUND CIRCUIT

  1. Turn ignition switch OFF.
  2. Disconnect cooling fan motor harness connector
  3. Check the continuity between cooling fan motor harness connector and ground.


  1. Also check harness for short to ground.

Is the inspection result normal? YES >> GO TO 2.

NO >> Repair or replace error-detected parts.

2.CHECK COOLING FAN MOTOR CIRCUIT-1

  1. Disconnect IPDM E/R harness connector.

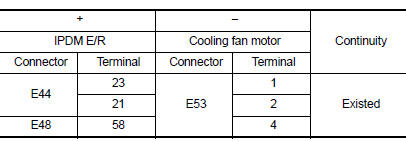

  2. Check the continuity between IPDM E/R harness connector and cooling fan motor harness connector.


  1. Also check harness for short to ground.

Is the inspection result normal? YES >> GO TO 3.

NO >> Repair or replace error-detected parts.

3.CHECK COOLING FAN MOTOR

Check cooling fan motor. Refer to EC-464, "Component Inspection (Cooling Fan Motor)".

Is the inspection result normal? YES >> GO TO 4.

NO >> Replace cooling fan motor. Refer to CO-17, "Removal and Installation".

4.CHECK INTERMITTENT INCIDENT

Check intermittent incident. Refer to GI-39, "Intermittent Incident".

Is the inspection result normal? YES >> Check IPDM E/R. Refer to PCS-10, "CONSULT Function (IPDM E/R)" (With intelligent key system) or PCS-38, "CONSULT Function (IPDM E/R)" (Without intelligent key system).

NO >> Repair or replace error-detected parts.

Component Inspection (Cooling Fan Motor)

1.CHECK COOLING FAN MOTOR

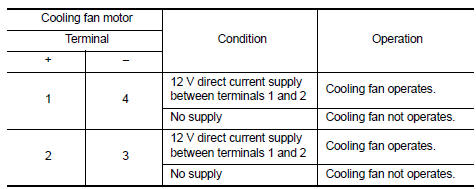

Supply cooling fan motor terminals with battery voltage and check operation.

Is the inspection result normal?


Is the inspection result normal? YES >> INSPECTION END

NO >> Replace cooling fan motor. Refer to CO-17, "Removal and Installation".
