STARTING SYSTEM (WITH INTELLIGENT KEY)

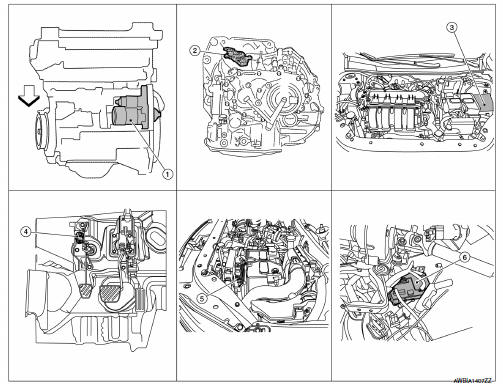

Component Parts Location


  1. Starter motor
  2. Transmission range switch (CVT Models)
  3. IPDM E/R (view with air inlet duct removed)
  4. Clutch interlock switch (M/T Models)
  5. ECM
  6. BCM (view under instrument panel, left side of vehicle)

Component Description

Component part

Description

Starter motor The starter motor plunger closes and the motor is supplied with battery power, which in turn cranks the engine, when the S terminal is supplied with electric power.
Transmission range switch (CVT Models) Transmission range switch supplies power to the starter relay and starter control relay inside the IPDM E/R when the shift selector is placed in the P or N position.
IPDM E/R CPU inside IPDM E/R operates the starter relay when the ignition switch is in the start position.
Clutch interlock switch (M/T Models) Clutch interlock switch supplies power to the coil side of the starter when the clutch pedal is depressed to crank the engine.
ECM ECM controls the starter control relay inside the IPDM E/R.
BCM BCM controls the starter relay inside IPDM E/R.
System description
...

System
STARTING SYSTEM (WITH INTELLIGENT KEY) Component Parts Location Starter motor Transmission range switch (CVT Models) IPDM E/R (view with air inlet duct removed) Clutch interlock switc ...
