Nissan Sentra Service Manual: Wind deflector

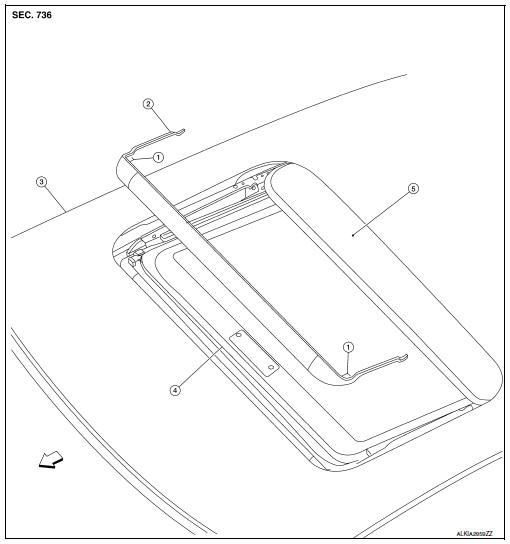

Exploded view
- Spring
- Wind deflector
- Roof panel
- Sunshade
- Glass lid
Front
Removal and installation
REMOVAL
- Open the glass lid.
- Release the springs (LH/RH), then remove the wind deflector.
INSTALLATION
Installation is in the reverse order of removal.
Sunshade
Exploded View
Sunshade
Moonroof unit assembly
Sunshade stopper (LH/RH)
Front
Removal and Installation
REMOVAL
Remove the headlining. Refer to INT-40, "Removal and Installatio ...
Moonroof switch
Removal and installation
REMOVAL
Remove the map lamp. Refer to INL-52, "Removal and Installation".
Release the pawls and remove the moonroof switch finisher (1).
: Pawl
Releas ...
