Nissan Sentra Service Manual: Removal and installation
Ecm

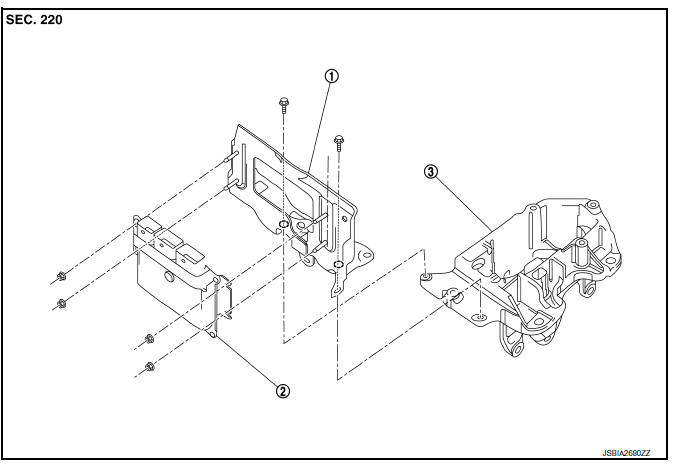

Exploded View
- ECM bracket
- ECM
- Engine mounting insulator bracket
Removal and Installation
CAUTION:
Perform ADDITIONAL SERVICE WHEN REPLACING ECM. Refer to EC-135, "Work Procedure".
REMOVAL
- Remove battery. Refer to PG-50, "Removal and Installation (Battery)".
- Disconnect ECM harness connectors. Refer to PG-42, "Description".
- Remove the fuse box bracket from the ECM bracket.
- Remove the ECM bracket from the engine mounting LH, together with ECM.
- Remove ECM mounting nuts, and then remove ECM.
INSTALLATION
Install in the reverse order of removal.
