Front under cover
Front under cover : removal and installation
REMOVAL
- Remove front side of front fender protector (LH/RH). Refer to EXT-28, "FENDER PROTECTOR : Removal and Installation - Front Fender Protector".
- Remove engine under cover. EXT-31, "ENGINE UNDER COVER : Removal and Installation"
- Remove front under cover bolts and clips.
- Slide front under cover toward vehicle front to release pawl.
: Pawl
- Pull toward the direction of the arrows as shown to remove front under cover.
INSTALLATION
Installation is in the reverse order of removal.
Engine under cover

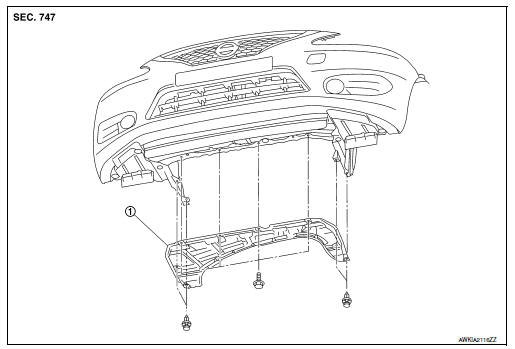

Engine under cover : exploded view
- Engine under cover
Engine under cover : removal and installation
REMOVAL
Remove engine under cover bolts, clips and engine under cover.
INSTALLATION
Installation is in the reverse order of removal.
Fender protector
Fender protector
Fender protector : exploded view
Front fender protector
Front wind deflector
U nut
Rivet
Grommet
Front
Fender protector : removal and installation - front f ...
Roof side molding
Exploded view
Roof side molding
Roof side molding clip
Roof panel
Body side outer panel
Adhesive tape
Removal and installation
REMOVAL
ROOF SIDE MOLDING
Release roof side mol ...
