Nissan Sentra Service Manual: Front bumper

Nissan Sentra Service Manual / Body exterior, doors, roof & vehicle security / Exterior / Removal and installation / Front bumper

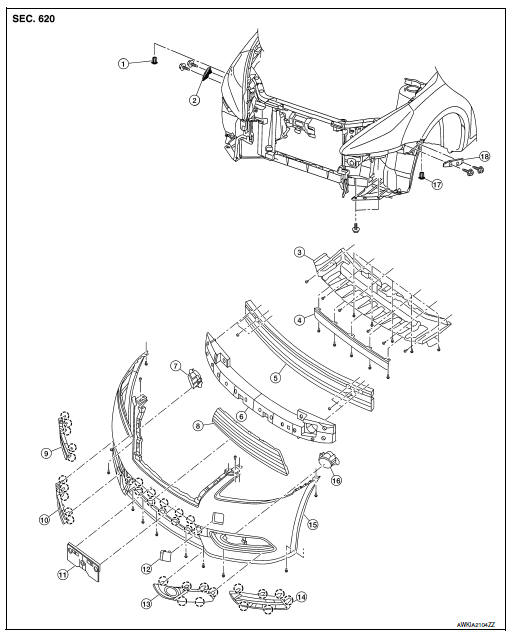

Exploded view

Grommet
Front bumper side bracket (RH)
Front under cover
Front air spoiler
Front bumper reinforcement
Front energy absorber
Front fog lamp (RH) (if equipped)
Front bumper lower grille
Front bumper fascia finisher (RH) (if equipped)
Front fog lamp finisher (RH) (if equipped)
License plate bracket
Tow cover
Front fog lamp finisher (LH) (if equipped)
Front bumper fascia finisher (LH) (if equipped)
Front bumper fascia
Front fog lamp (LH) (if equipped)
Grommet
Front bumper side bracket (LH)

Removal and installation Pawl

Removal and installation

CAUTION:

Bumper fascia is made of resin. Use care when handling to prevent damage. Avoid contact with oily substances.

REMOVAL

Remove front grille. Refer to EXT-23, "Removal and Installation".
Remove front bumper fascia clips (A) from front bumper fascia upper side.

Remove front bumper fascia clips (A) from front bumper fascia lower side.

Remove fender protector bolts (A) (LH/RH).

Remove front bumper fascia screws (A) (LH/RH).

Apply protective tape (A) to protect the component from damage on each side as shown.

Release the front bumper fascia to release from the front bumper fascia side bracket on each side (LH/RH) as shown.

CAUTION: : Pawl

CAUTION:

When removing front bumper fascia two people are required to avoid damaging.

Disconnect the harness connectors from the front fog lamps (if equipped).
Remove the front bumper fascia.
Release front fog lamp finisher pawls, then remove front fog lamp finishers (LH/RH).

Pawl

Remove the front fog lamp assemblies (LH/RH) (if equipped) from front bumper fascia. Refer to EXL-122, "Removal and Installation".
Remove front bumper energy absorber.
Remove front bumper reinforcement nuts and the front bumper reinforcement.
Remove front bumper side bracket screws and the front bumper side brackets (LH/RH).
Remove front under cover bolts, clips and front under cover.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

The following table shows the specified values for checking normal installation status.
Fitting adjustment cannot be performed.
