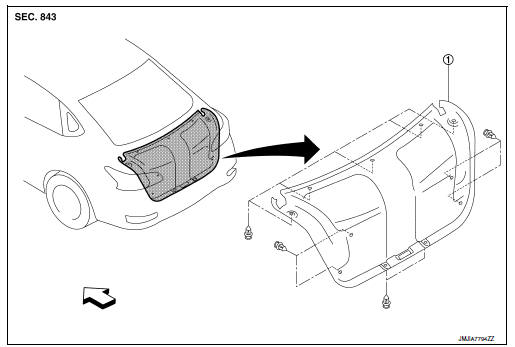

Exploded View

Front
Removal and Installation
REMOVAL
Remove trunk lid finisher clips (A) and trunk lid finisher.

INSTALLATION
Installation is in the reverse order of removal.
Trunk room trim
Instrument panelRearview mirror (if so equipped)
The night position 1 reduces glare from the
headlights of vehicles behind you at night.
Use the day position 2 when driving in daylight
hours.
WARNINGUse the night position only when
necessary,
because it reduces rear view clarity.
...
Basic inspection
Diagnosis and repair workflow
Work Flow
Detailed flow
1.Interview from the customer
Clarify customer complaints before inspection. First of all,
perform an interview utilizing stc-20, "diagnostic
work sheet" and reproduce symptoms as well as fully understand it. Ask customer
abou ...
System description
Component parts
Component parts location
Ipdm e/r
System
Relay control system
Relay control system : system diagram
System diagram
Relay control system : system description
Ipdm e/r activates the internal control circuit to perform the relay on-off
control according to the inp ...
