Nissan Sentra Service Manual: System description

Nissan Sentra Service Manual / Transmission & driveline / Transaxle & transmission / 6MT: RS6F94R / System description

COMPONENT PARTS

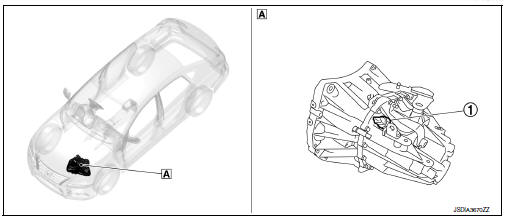

Component Parts Location


  1. Transaxle assembly

STRUCTURE AND OPERATION


STRUCTURE AND OPERATION

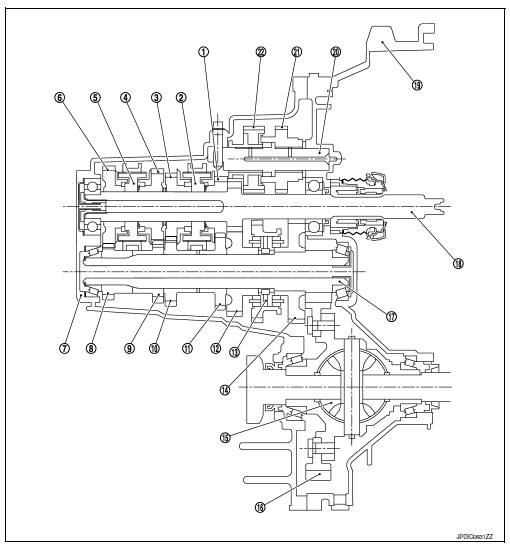

Sectional View


  1. 3rd input gear
  2. 3rd-4th synchronizer hub assembly
  3. 4th input gear
  4. 5th input gear
  5. 5th-6th synchronizer hub assembly
  6. 6th input gear
  7. Transaxle case
  8. 6th main gear
  9. 5th main gear
  10. 4th main gear
  11. 3rd main gear
  12. 2nd main gear
  13. 1st-2nd synchronizer hub assembly
  14. 1st main gear
  15. Differential
  16. Final gear
  17. Mainshaft
  18. Input shaft
  19. Clutch housing
  20. Reverse idler shaft
  21. Reverse input gear
  22. Reverse output gear

System Description

Triple-cone synchronizer

Triple-cone synchronizers are adopted for the 1st and the 2nd gears to reduce operating force of the shifter lever.


  1. 1st main gear
  2. 1st-2nd coupling sleeve
  3. Insert key
  4. Outer baulk ring
  5. 2nd main gear
  6. Synchronizer cone
  7. Inner baulk ring
  8. 1st-2nd synchronizer hub

Reverse gear noise prevention function (synchronizing method)

Reverse gear assembly consists of reverse input gear, return spring, reverse baulk ring, and reverse output gear. When the shifter lever is moved to the reverse position, the construction allows smooth shift operation by stopping the reverse idler shaft rotation by frictional force of synchronizer.


  1. Reverse fork rod
  2. Reverse output gear
  3. Return spring
  4. Reverse baulk ring
  5. Reverse input gear
