Door mirror remote control switch (mirror switch/changeover switch)
Component Inspection
1.Check mirror switch & changeover switch
- Turn ignition switch off.
- Disconnect door mirror remote control switch connector.

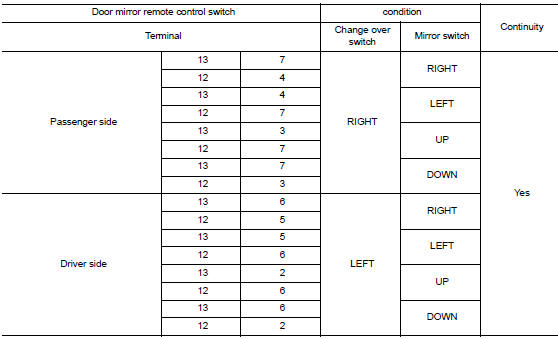

- Check door mirror remote control switch.
Is the inspection result normal? Yes >> inspection end.
No >> replace door mirror remote control switch. Refer to mir-21, "removal and installation".
