Nissan Sentra Service Manual: Symptom diagnosis
Noise, vibration and harshness (NVH) troubleshooting

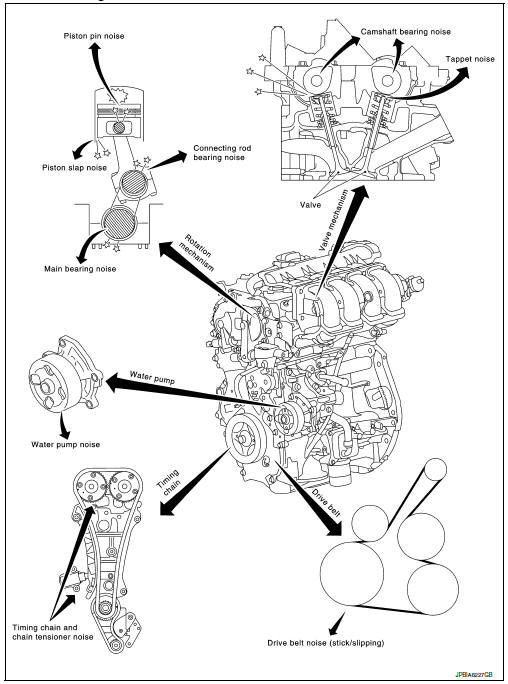

NVH troubleshooting chart
- Locate the area where noise occurs.
- Confirm the type of noise.
- Specify the operating condition of engine.
- Check specified noise source.
If necessary, repair or replace these parts.
- Closely related
- Related
- Sometimes related —: Not related
