Nissan Sentra Service Manual: Rear combination lamp

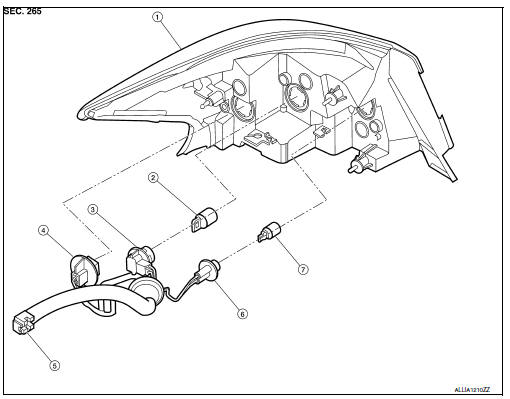

Exploded View
- Rear combination lamp
- Rear turn signal lamp bulb
- Rear turn signal lamp socket
- LED lamp harness connector
- Rear combination lamp harness connector
- Back-up lamp bulb socket
- Back-up lamp bulb
Disassembly and Assembly
DISASSEMBLY
WARNING:
Do not touch bulb while it is lit or right after being turned off. Burning may result.
CAUTION:
- Do not touch glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent damage to bulb.
- Do not leave the bulb out of the lamp reflector for a long time
because dust, moisture, smoke, etc.
may affect the performance of the lamp.
- Remove rear combination lamp. Refer to EXL-126, "Removal and Installation".
- Rotate rear turn signal lamp bulb socket counterclockwise to remove from rear combination lamp.
- Remove the rear turn signal lamp bulb from bulb socket.
- Rotate back-up lamp bulb socket counterclockwise to remove from rear combination lamp.
- Remove the back-up lamp bulb from bulb socket
- Disconnect the harness connector from the LED lamp.
ASSEMBLY
Assembly is in the reverse order of disassembly.
CAUTION:
After installing, be sure to install the bulb sockets securely to ensure watertightness.
