Nissan Sentra Service Manual: Service data and specifications (SDS)
Bulb specifications

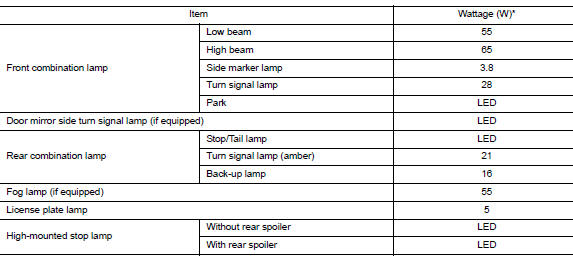

*: Always check with the Parts Department for the latest parts information.
Rear combination lamp
Exploded View
Rear combination lamp
Rear turn signal lamp bulb
Rear turn signal lamp socket
LED lamp harness connector
Rear combination lamp harness
connector
Back-up lamp bulb s ...
