Nissan Sentra Service Manual: Preparation

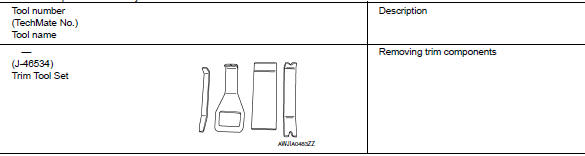

Special service tools
The actual shape of the tools may differ from those illustrated here.
Precaution for work
When removing or disassembling each component, be careful not to damage
or deform it. If a component
may be subject to interference, be sure to protect it with a shop cloth.
When removing (d ...
