Nissan Sentra Service Manual: Wiring diagram

Brake control system

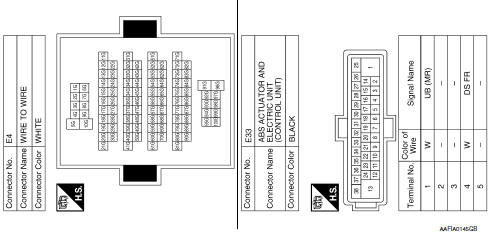

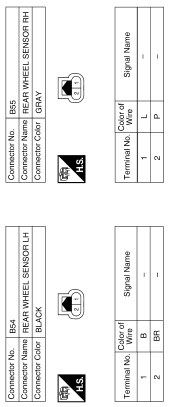

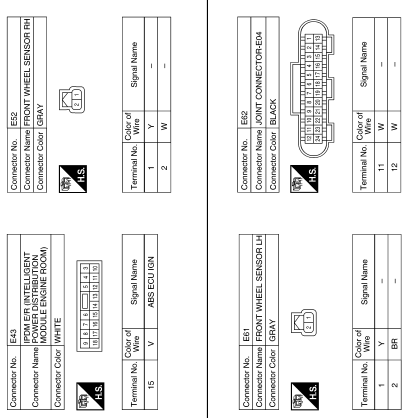

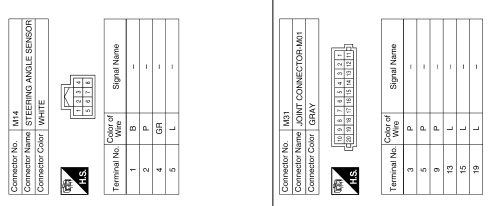

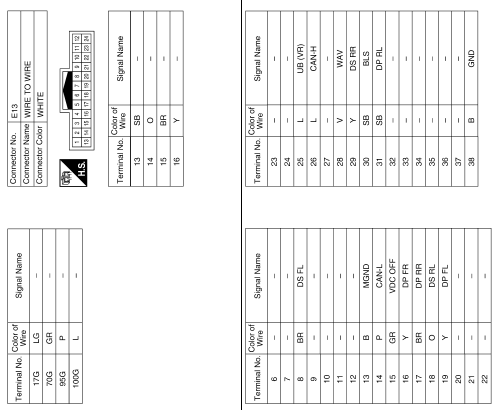

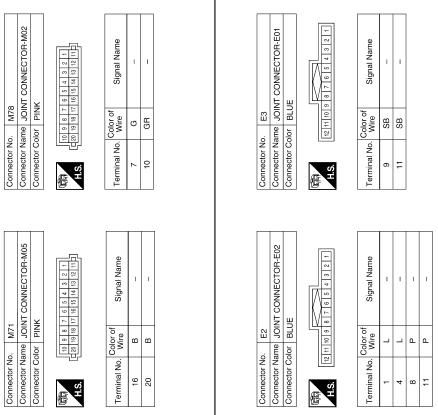

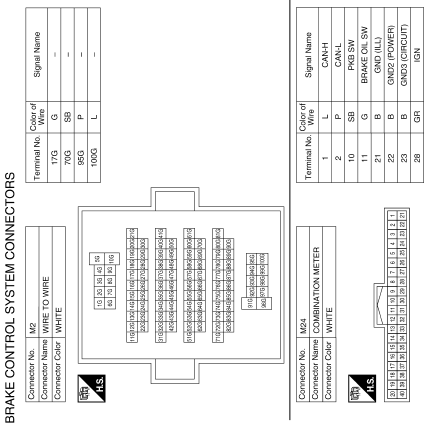

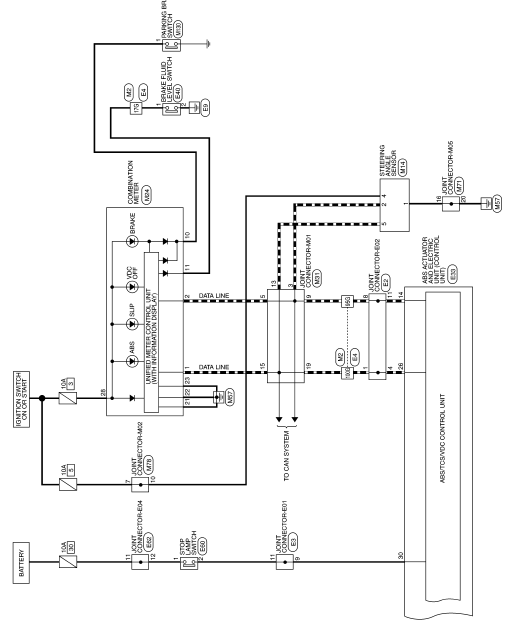

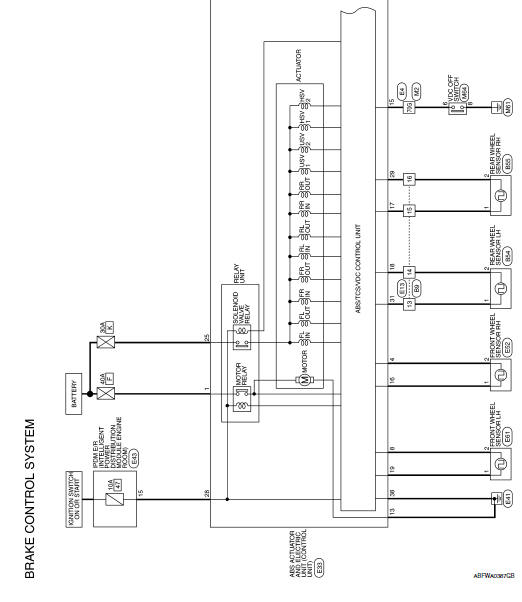

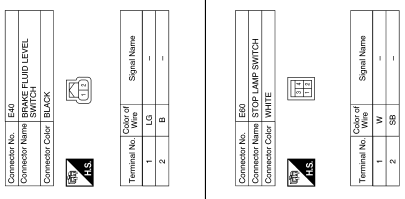

Wiring Diagram












Basic inspection


Ecu diagnosis information
Abs actuator and electric unit (control unit) Reference Value VALUES ON THE DIAGNOSIS TOOL CAUTION: The display shows the control unit calculation data, so a normal value might be displayed ev ...

Basic inspection
...
