Nissan Sentra Service Manual: Moonroof switch
Removal and installation
REMOVAL
- Remove the map lamp. Refer to INL-52, "Removal and Installation".

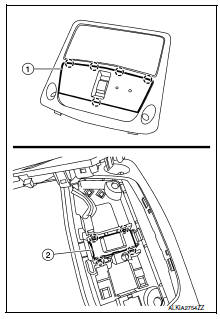

- Release the pawls and remove the moonroof switch finisher (1).
: Pawl
- Release the pawls and remove the moonroof switch (2).
: Pawl
INSTALLATION
Installation is in the reverse order of removal.
Wind deflector
Exploded view
Spring
Wind deflector
Roof panel
Sunshade
Glass lid
Front
Removal and installation
REMOVAL
Open the glass lid.
Release the springs (LH/RH), then remove the ...
Unit disassembly and assembly
Moonroof unit assembly
Exploded view
Drain assembly
Glass lid
Weatherstrip
Moonroof rail assembly
Drain hose front (RH)
Moonroof motor assembly
Drain hose front (LH)
Side bracke ...
