The remote keyless entry function can operate all door locks using the remote keyless function of the Intelligent Key. The remote keyless function can operate at a distance of 33 ft (10 m) away from the vehicle. The operating distance depends upon the conditions around the vehicle.
The remote keyless entry function will not function under the following conditions:
CAUTION
When locking the doors using the Intelligent Key, be sure not to leave the key in the vehicle.

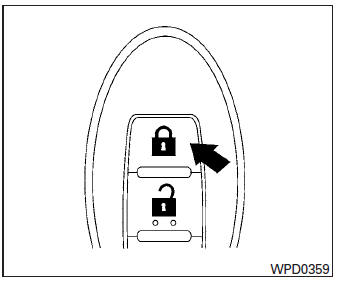

Locking doors

CAUTION
After locking the doors using the Intelligent Key, be sure that the doors have been securely locked by operating the door handles.

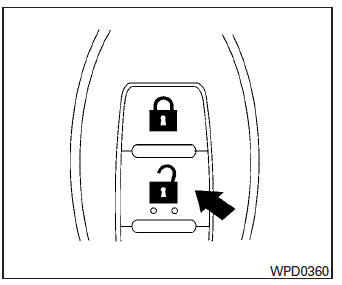

Unlocking doors

button on the
button again
All doors will be locked automatically unless one
of the following operations is performed within
1 minute after pressing the
button:
The interior light illuminates for a period of time when a door is unlocked and the room light switch is in the DOOR position.
The light can be turned off without waiting by performing one of the following operations:

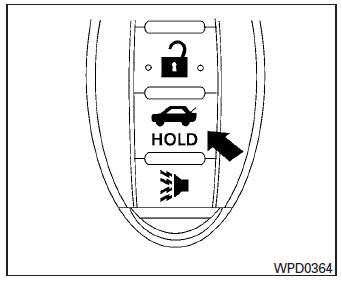

Releasing the trunk lid
Press the
button for longer than
0.5 seconds
to open the trunk lid. The trunk release
button will not operate when the ignition switch is
placed in the ON position.

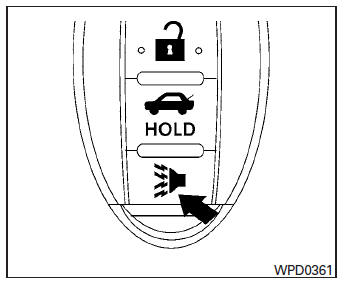

Using the panic alarm

If you are near your vehicle and feel threatened,
you may activate the panic alarm to call attention
by pressing and holding the
button
on the
Intelligent Key for longer than 0.5 seconds.
The panic alarm and headlights will stay on for a period of time.
The panic alarm stops when:

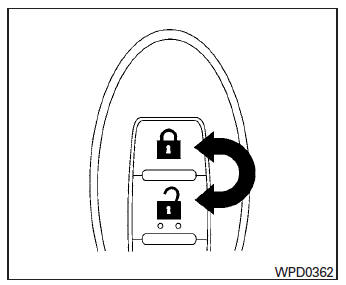

Silencing the horn beep feature

If desired, the horn beep feature can be deactivated using the Intelligent Key.
To deactivate: Press and hold the
and
buttons for at least 2
seconds.
The hazard warning lights will flash 3 times to confirm that the horn beep feature has been deactivated.
To activate: Press and hold the
and
buttons for at least 2 seconds
once
more.
The hazard warning lights will flash once and the horn will sound once to confirm that the horn beep feature has been reactivated.
Deactivating the horn beep feature does not silence the horn if the alarm is triggered.

NISSAN Intelligent Key® Operation
Warning lights and audible remindersAdjustment of steering angle sensor neutral position
Description
Refer to the table below to determine if adjustment of steering
angle sensor neutral position is required.
×: Required –: Not required
Work Procedure
ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION
CAUTION:
To adjust neutral position of steering angle sensor, ...
Seat belt buckle switch signal circuit
Description
Transmits a seat belt buckle switch lh (driver seat) signal to the
combination meter
Component function check
1. Check combination meter input signal
Select data monitor for meter/m&a and check the buckle sw monitor value.
YES >> Inspection End.
NO >> Refe ...
Flywheel
Exploded View
Flywheel
Removal and Installation
REMOVAL
Remove the engine and the transaxle assembly from the vehicle, and
separate the transaxle from the
engine. Refer to TM-28, "Exploded View".
Remove flywheel.
Secure flywheel (1) using Tool (A), and remove b ...
