Nissan Sentra Service Manual: Ignition coil

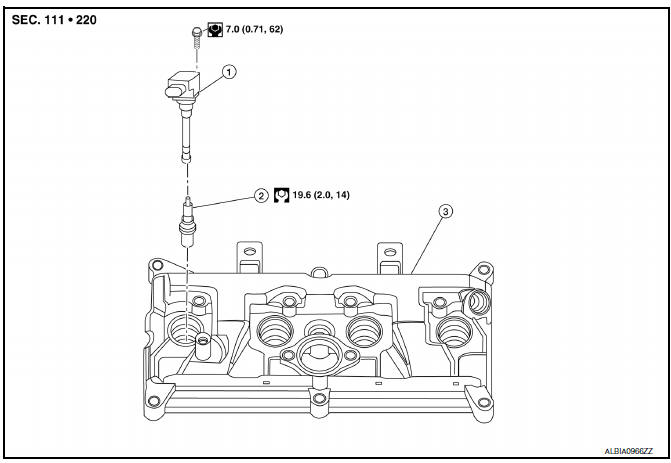

Exploded View
- Ignition coil
- Spark plug
- Rocker cover
Removal and Installation
REMOVAL
- Remove the engine room cover. Refer to EM-24, "Exploded View".
- Disconnect the harness connector from the ignition coil.
- Remove the ignition coil.
CAUTION:
Do not drop or shock it.
INSTALLATION
Installation of remaining components is in the reverse order of removal.
Fuel injector and fuel tube
Exploded View
Bracket
Fuel tube bracket
Fuel feed tube
Quick connector cap
Fuel tube
O-ring (black)
Fuel injector
O-ring (green)
Injector clip
CAUTION:
Do not remove or dis ...
Rocker cover
Exploded View
Oil filler cap
Rocker cover protector
Oil filler tube
O-ring
Rocker cover
Rocker cover gasket
Refer to INSTALLATION
Removal and Installation
REMOVAL
Remo ...
