Nissan Sentra Service Manual: Electrical units location

Electrical units location

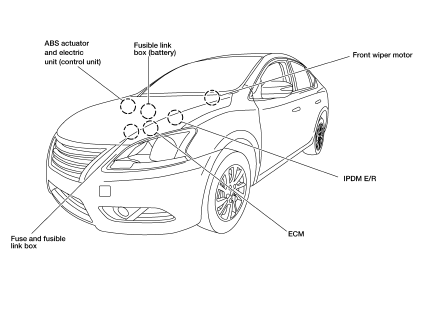

Engine compartment

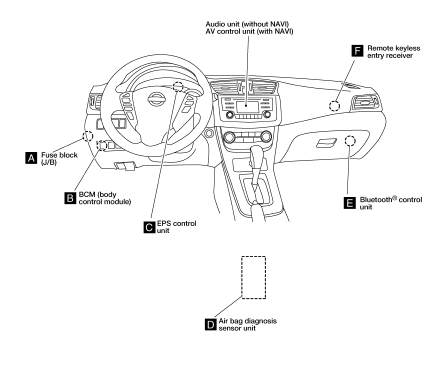

Passenger compartment


Passenger compartment

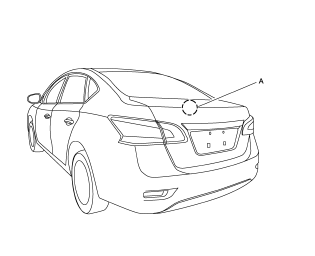

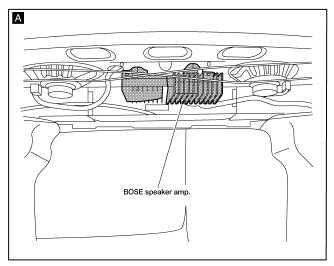

Luggage compartment


Luggage compartment


Harness connector


Ground
Ground distribution Main harness Engine room harness Engine control harness Body harness ...

Harness connector
Description Harness connector (tab-locking type) The tab-locking type connectors help prevent accidental looseness or disconnection. The tab-locking type connectors are disconnected by pushi ...

Other materials:

Symptom diagnosis
Audio system Symptom table Related to audio Related to hands-free phone Before performing diagnosis, confirm that the cellular phone being used by the customer is compatible with the vehicle. It is possible that a malfunction is occurring due to a version change of the phone ...

Door outside molding
Exploded view Front door assembly Grommet Front door outside molding Rear door outside molding Rear door assembly Door glass  Clip Front door outside molding FRONT DOOR OUTSIDE MOLDING : Removal and Installation REMOVAL Remove front door mirror. Refer to MIR-18, &quo ...

Front wiper motor lo circuit
Component function check 1. Check front wiper lo operation Ipdm e/r auto active test Start ipdm e/r auto active test. Refer to pcs-9, "diagnosis description" (with intelligent key system) or pcs-37, "diagnosis description" (without intelligent key system). Check tha ...
