DTC Logic

DTC DETECTION LOGIC

DTC

CONSULT screen terms (Trouble diagnosis content)

DTC detection condition

Possible causes

P0706

T/M RANGE SENSOR A (Transmission Range Sensor A Circuit Range/Performance)

All range signals stay OFF continuously for 30 seconds under the following diagnosis condition 1 and 2:

Diagnosis condition 1 (continued for 30 seconds or more)

TCM power supply voltage: More than 11 V

Diagnosis condition 2 (continued for 2 seconds or more)

Vehicle speed: Less than 3 km/h (2 MPH)
Accelerator pedal position: 0.6/8 or less
Idle switch: ON
Stop lamp switch: ON

Harness or connector (Open circuit between ignition switch and transmission range switch/open circuit between transmission range switch and TCM)
Transmission range switch
Control cable

DTC CONFIRMATION PROCEDURE

1.PREPARATION BEFORE WORK

If another вЂњDTC CONFIRMATION PROCEDUREвЂќ occurs just before, turn ignition switch OFF and wait for at least 10 seconds, then perform the next test.

>> GO TO 2.

2.PERFORM DTC CONFIRMATION PROCED

Start the engine.
Maintain the following conditions

Accelerator pedal position : 0.0/8

Brake pedal : Depressed

Vehicle speed : 0 km/h (0 MPH)

Shift the selector lever through entire positions from вЂњPвЂќ to вЂњLвЂќ. (Hold the selector lever at each position for 35 seconds or more.)
Check the first trip DTC.

Is вЂњP0706вЂќ detected? YES >> Go to TM-167, "Diagnosis Procedure".

NO >> INSPECTION END

Diagnosis Procedure

1.ADJUSTMENT OF CONTROL CABLE

Adjust control cable. Refer to TM-150, "Adjustment".

>> GO TO 2.

2.PERFORM DTC CONFIRMATION PROCEDURE

With CONSULT

Turn ignition switch ON.
Select вЂњSelf Diagnostic ResultsвЂќ in вЂњTRANSMISSIONвЂќ.
Touch вЂњEraseвЂќ.
Perform вЂњDTC CONFIRMATION PROCEDUREвЂќ. Refer to TM-167, "DTC Logic".

Is вЂњP0706вЂќ detected? YES >> GO TO 3.

NO >> INSPECTION END

3.CHECK POWER CIRCUIT

Turn ignition switch OFF.
Disconnect transmission range switch connector.
Turn ignition switch ON.
Check voltage between transmission range switch harness connector terminal and ground.

Is the check result normal?

Is the check result normal? YES >> GO TO 4.

NO >> GO TO 7.

4.CHECK CIRCUIT BETWEEN TRANSMISSION RANGE SWITCH AND TCM (PART 1)

Turn ignition switch OFF.
Disconnect TCM connector.

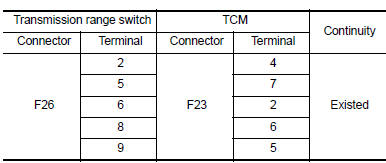

Check continuity between transmission range switch harness connector terminals and TCM harness connector terminals.

Is the check result normal?

Is the check result normal? YES >> GO TO 5.

NO >> Repair or replace malfunctioning parts.

5.CHECK CIRCUIT BETWEEN TRANSMISSION RANGE SWITCH AND TCM (PART 2)

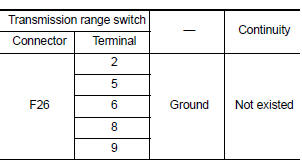

Check continuity between transmission range switch harness connector terminals and ground.

Is the check result normal?

Is the check result normal? YES >> GO TO 6.

NO >> Repair or replace malfunctioning parts.

6.CHECK TRANSMISSION RANGE SWITCH

Check transmission range switch. Refer to TM-169, "Component Inspection".

Is the check result normal? YES >> Check intermittent incident. Refer to GI-39, "Intermittent Incident".

NO >> Repair or replace malfunctioning parts.

7.DETECT MALFUNCTIONING ITEMS

Check the following items:

Harness open circuit or short circuit between ignition switch and IPDM E/R. Refer to PG-20, "Wiring Diagram вЂ” Ignition Power Supply вЂ”".
Harness open circuit or short circuit between IPDM E/R and transmission range switch.
10A fuse (No. 45, IPDM E/R). Refer to PG-49, "IPDM E/R Terminal Arrangement".
IPDM E/R

Is the check result normal? YES >> Check intermittent incident. Refer to GI-39, "Intermittent Incident".

NO >> Repair or replace malfunctioning parts.

Component Inspection

1.CHECK TRANSMISSION RANGE SWITCH

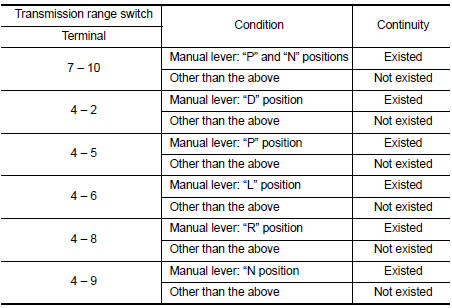

Check continuity between transmission range switch connector terminals.

Is the inspection result normal?

Is the inspection result normal? YES >> INSPECTION END

NO >> There is a malfunction of transmission range switch. Replace transaxle assembly. Refer to TM- 283, "Removal and Installation".
