Nissan Sentra Service Manual: Engine control system
Symptom Table

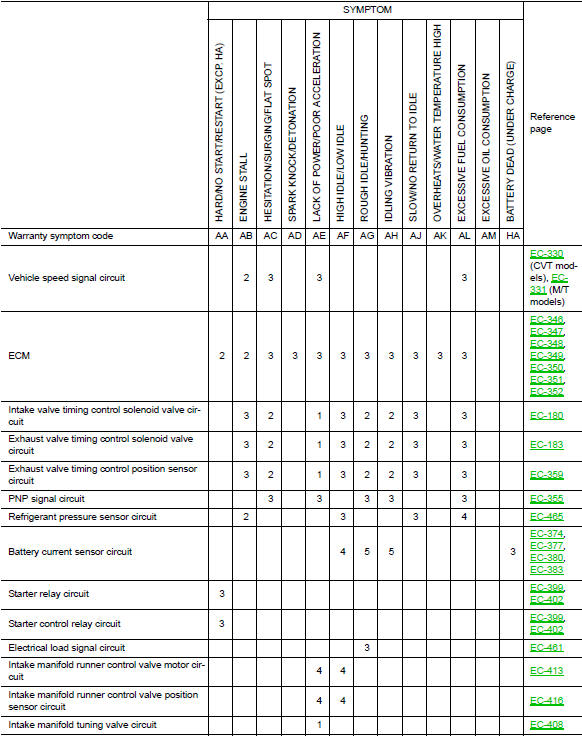

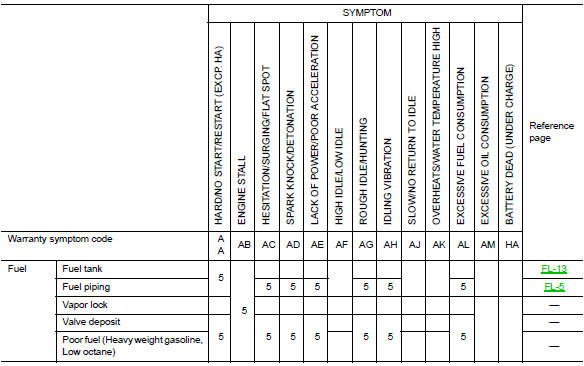

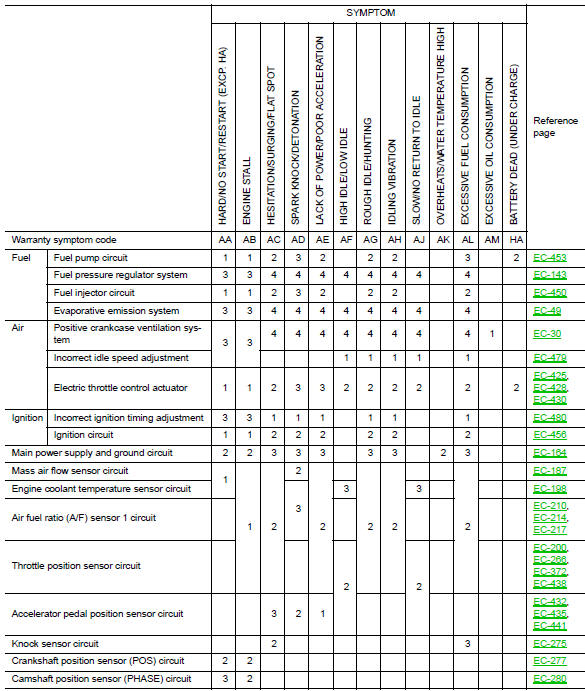

SYSTEM — BASIC ENGINE CONTROL SYSTEM

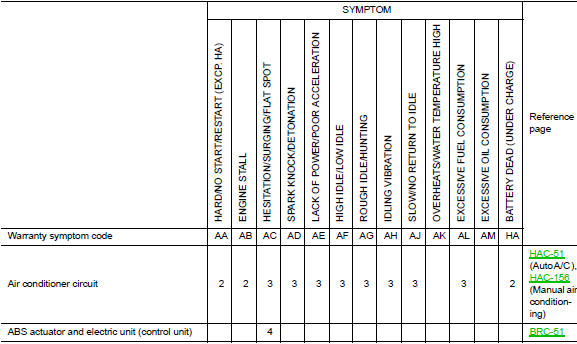

1 - 6: The numbers refer to the order of inspection.
(continued on next table)

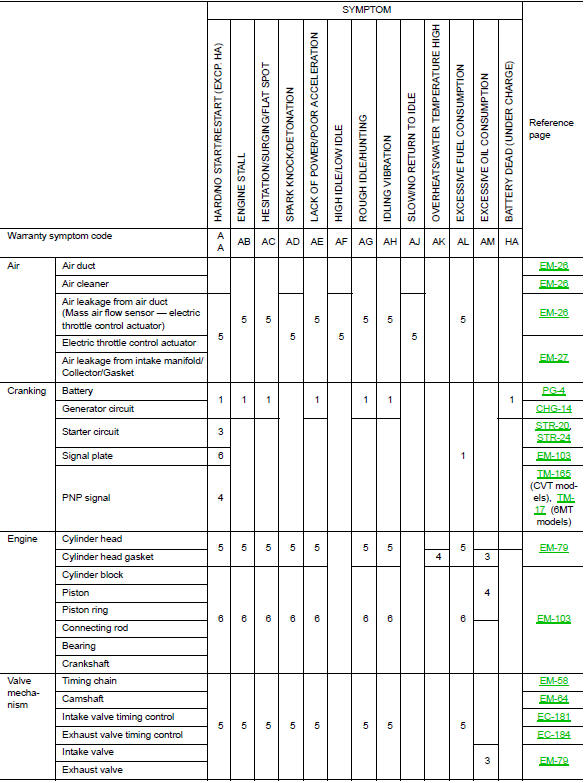

SYSTEM — ENGINE MECHANICAL & OTHER

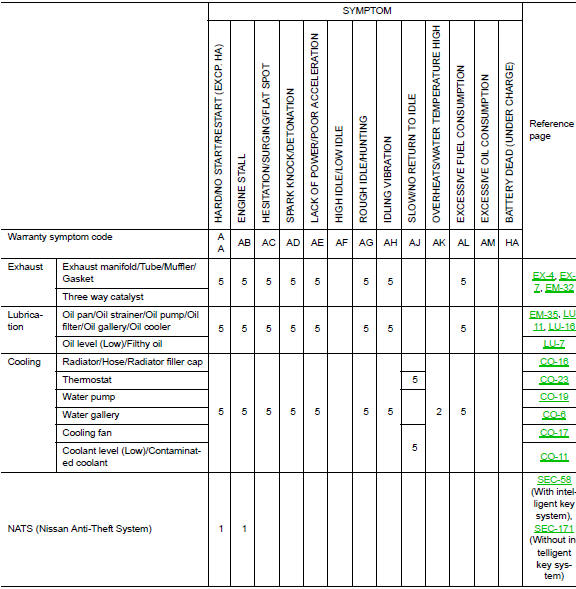

1 - 6: The numbers refer to the order of inspection.
Normal operating condition
Description
FUEL CUT CONTROL (AT NO LOAD AND HIGH ENGINE SPEED)
If the engine speed is above 2,500 rpm under no load (for example, the
selector lever position is neutral and
engine speed is over ...
