Nissan Sentra Service Manual: Wiring diagram

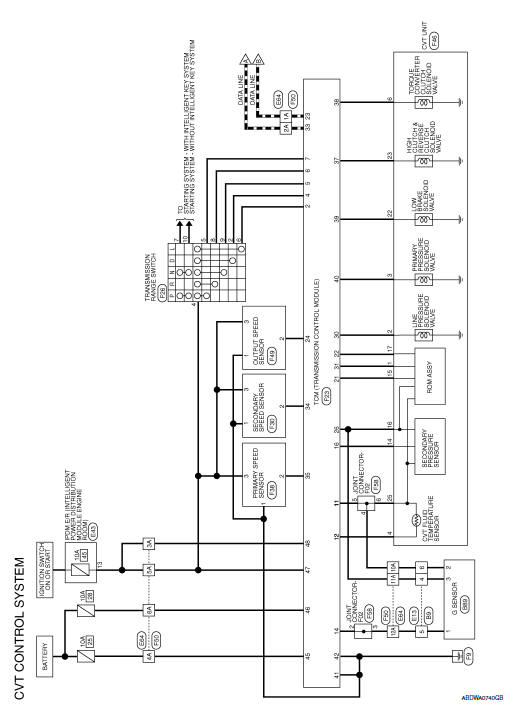

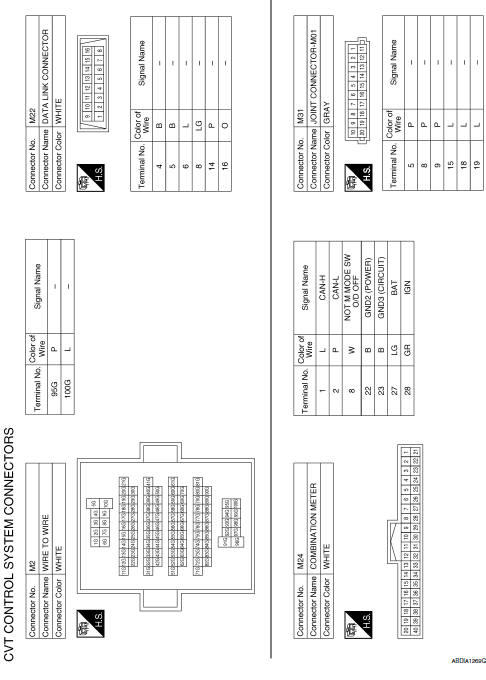

CVT Control system

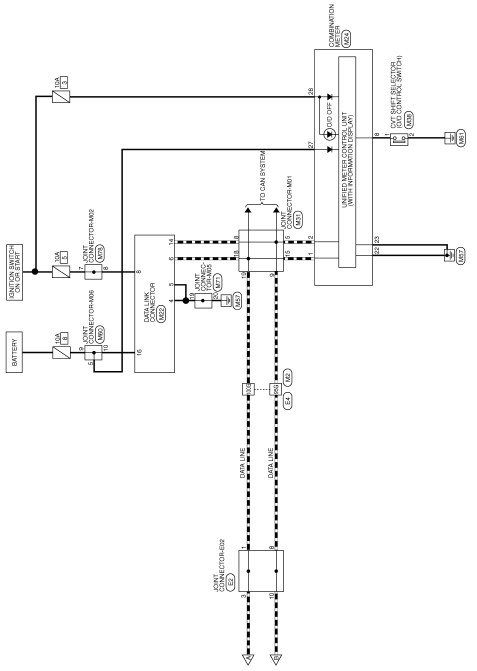

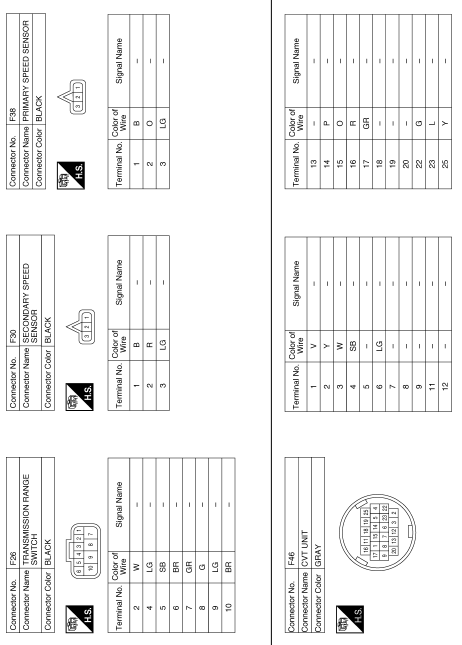

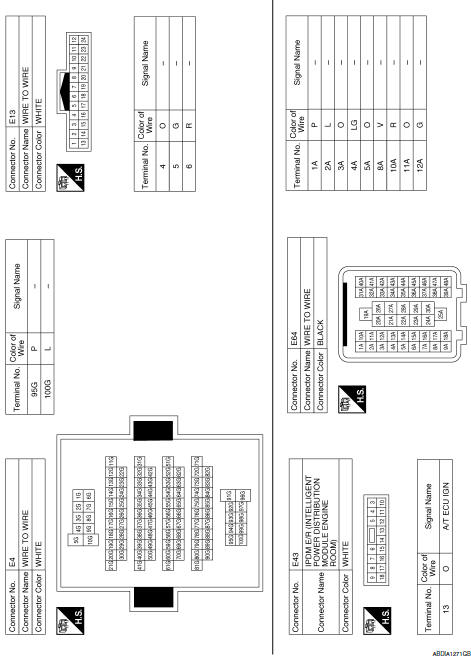

Wiring Diagram








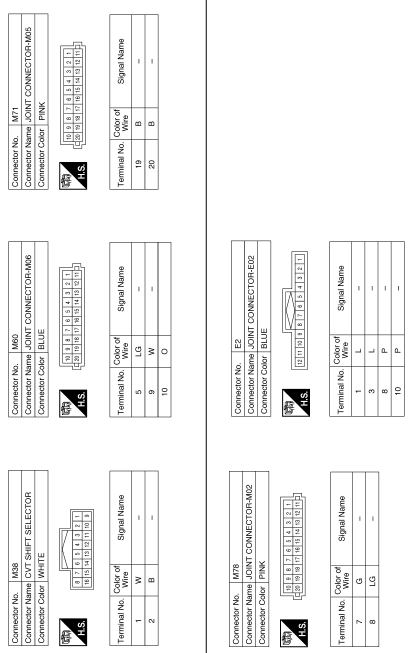

CVT Shift lock system


CVT Shift lock system

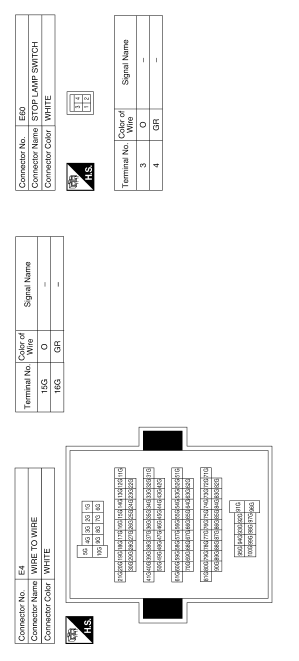

Wiring Diagram



Basic inspection


ECU diagnosis information
TCM Reference Value CONSULT DATA MONITOR STANDARD VALUE NOTE: The following table includes information (items) inapplicable to this vehicle. For information (items) applicable to this veh ...

Basic inspection
DIAGNOSIS AND REPAIR WORK FLOW Work Flow NOTE: “DTC” includes DTC at the 1st trip. 1.OBTAIN INFORMATION ABOUT SYMPTOM Refer to TM-140, "Diagnostic Work Sheet" and interview t ...

Other materials:

Removal and installation
Hood Hood assembly Hood assembly : exploded view Hood hinge (LH/RH) Hood assembly Hood bumper rubber Hood seal Hood insulator Hood support rod Hood support rod clamp Clip Hood assembly : removal and installation CAUTION: Use two people when removing or installing h ...

Front suspension assembly
Inspection COMPONENT PART Check the mounting conditions (looseness, backlash) of each component. Verify the component conditions (wear, damage) are normal. Ball Joint Axial End Play Set the front wheels in a straight-ahead position. Hold the axle side of the transverse link, and check th ...

Main line between dlc and av circuit
Diagnosis procedure 1.Check harness continuity (open circuit) Turn the ignition switch off. Disconnect the battery cable from the negative terminal. Disconnect the following harness connectors. ECM AV control unit Check the continuity between the data link connector and the av ...
