Nissan Sentra Service Manual: Wiring diagram

Ipdm e/r (intelligent power distribution module engine room)

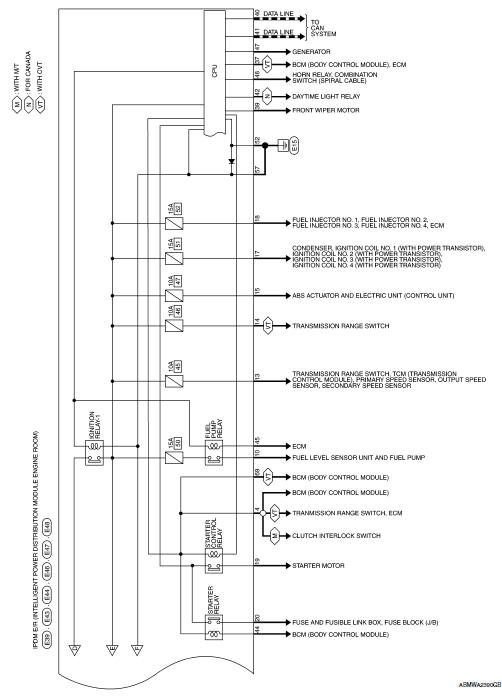

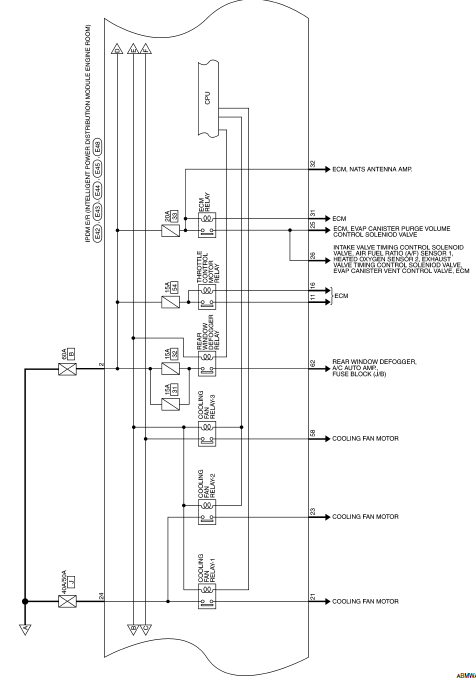

Wiring diagram





Dtc/circuit diagnosis


Ecu diagnosis information

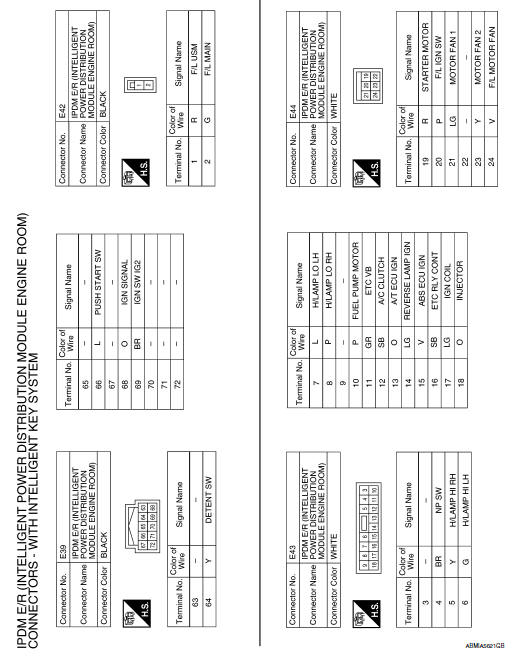

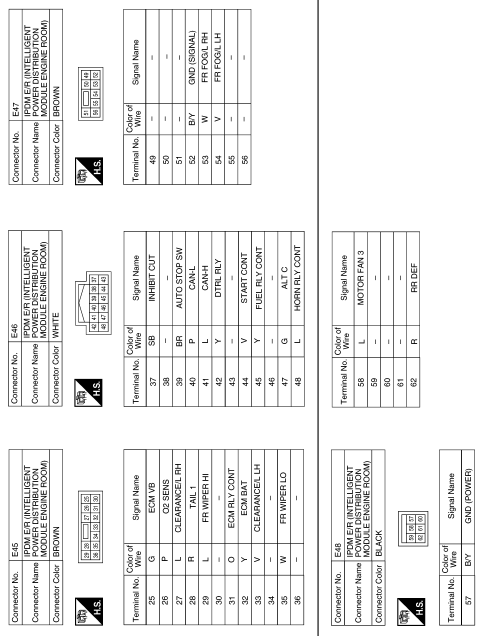

Ipdm e/r (intelligent power distribution module engine room) Reference Value Values on the diagnosis tool Terminal layout Physical values Fail-safe Can communic ...

Dtc/circuit diagnosis
U1000 can comm circuit Description Refer to LAN-7, "CAN COMMUNICATION SYSTEM : System Description". Dtc logic DTC DETECTION LOGIC CONSULT Display DTC Detection Condition ...
