Nissan Sentra Service Manual: Wiring diagram

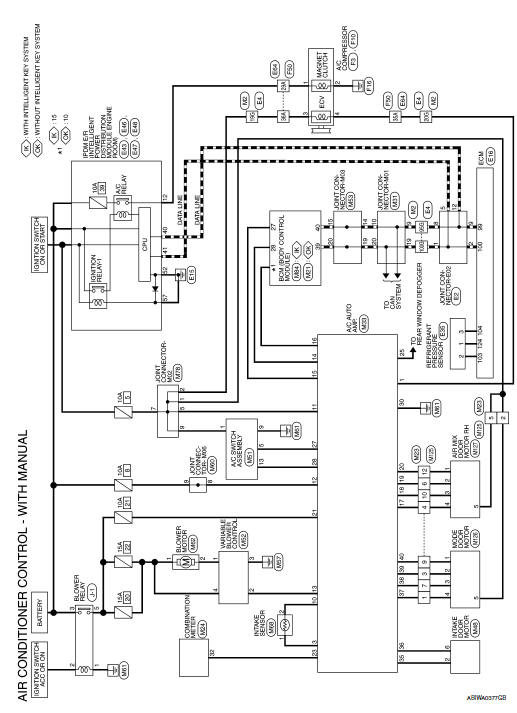

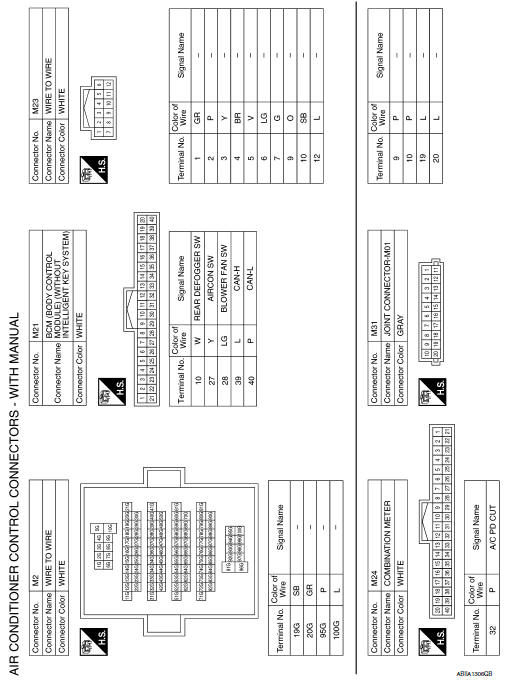

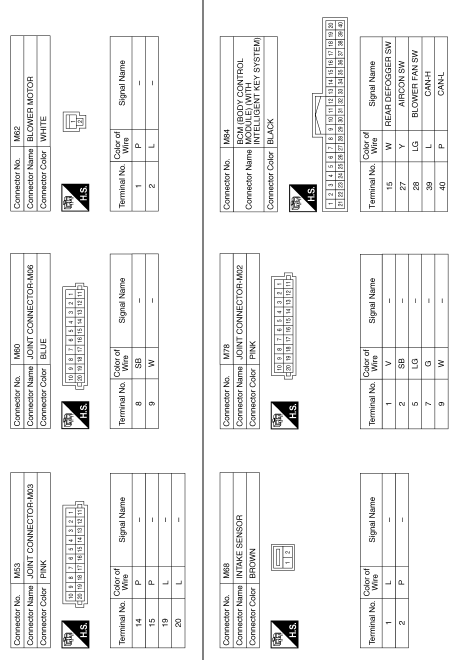

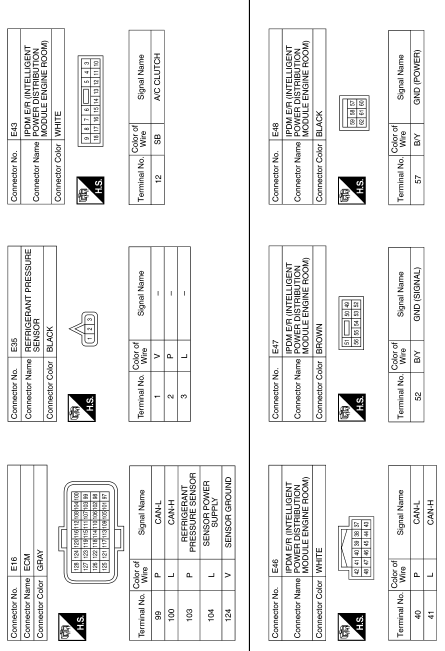

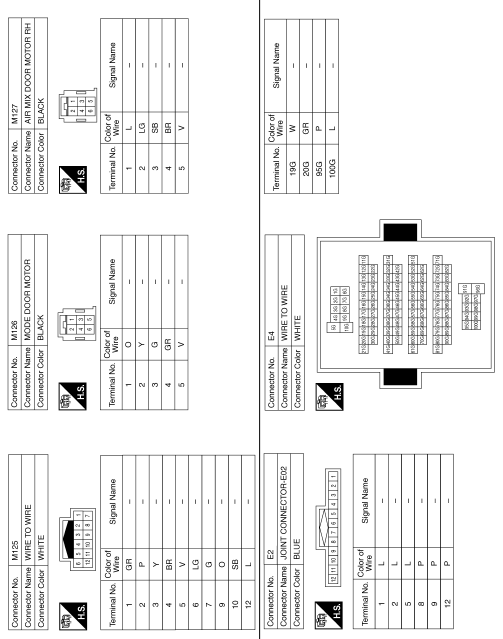

Manual air conditioning system

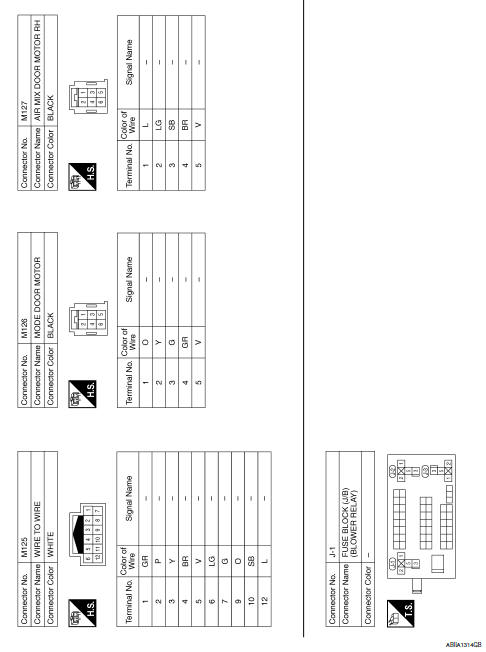

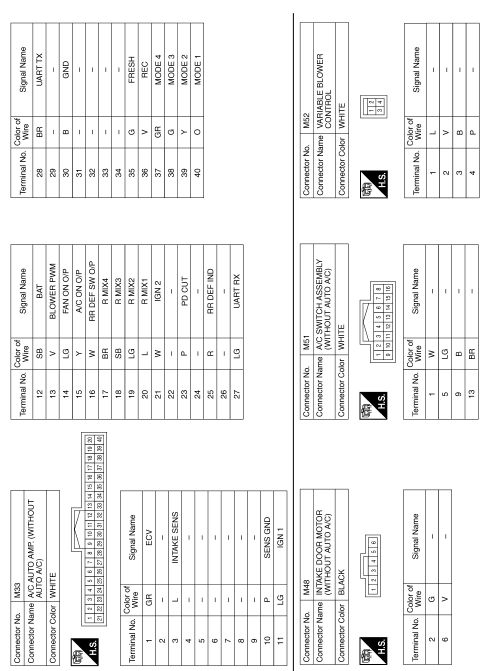

Wiring Diagram

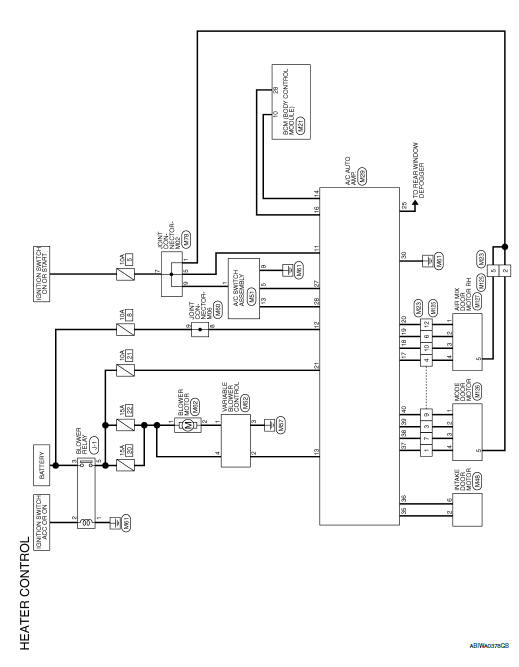

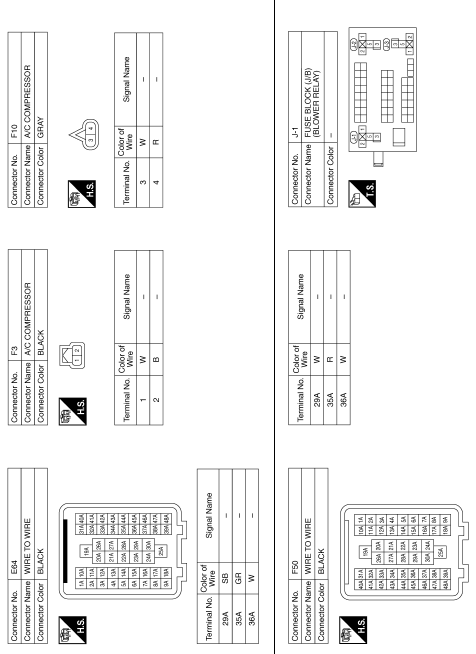

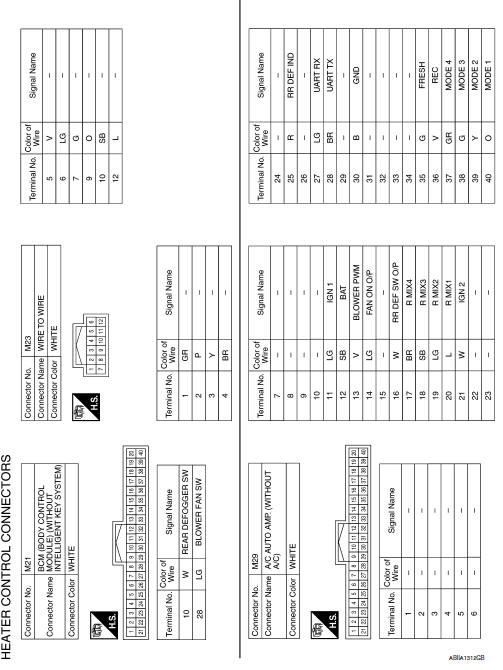

Manual heater system


Manual heater system

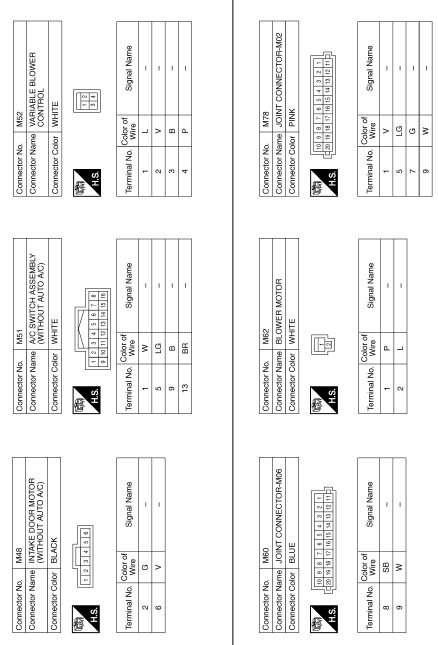

Wiring Diagram
