Nissan Sentra Service Manual / Ventilation, heater & air conditioner / Heater & air conditioning control system / Manual air conditioner / ECU diagnosis information

A/C AUTO AMP

Reference Value

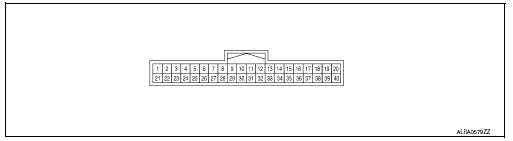

TERMINAL LAYOUT

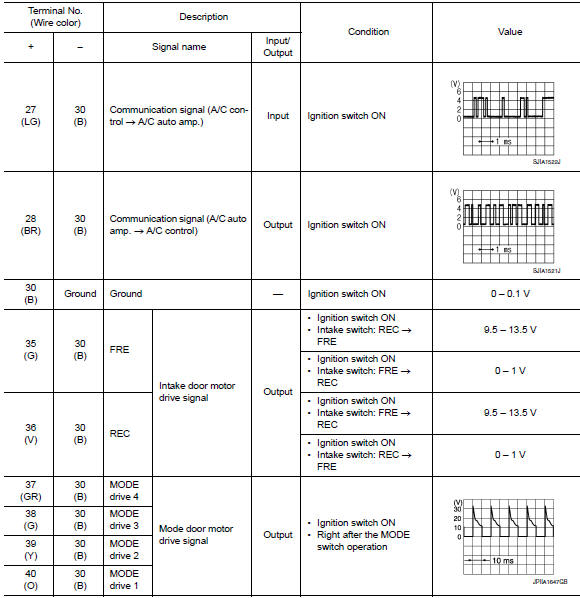

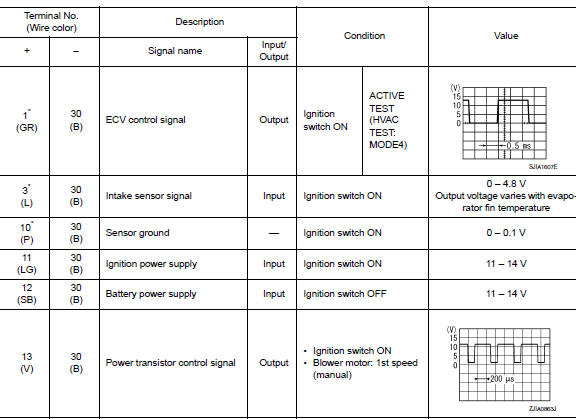

PHYSICAL VALUES

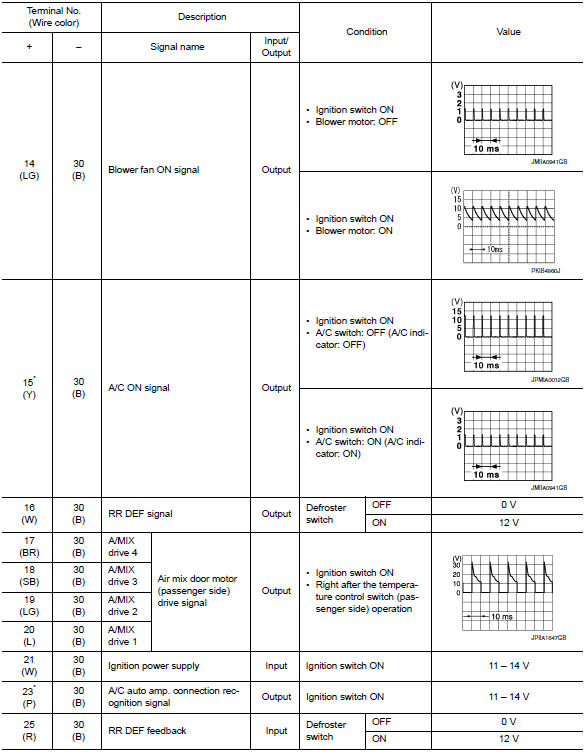

PHYSICAL VALUES

*:With manual A/C

ECM, IPDM E/R, BCM

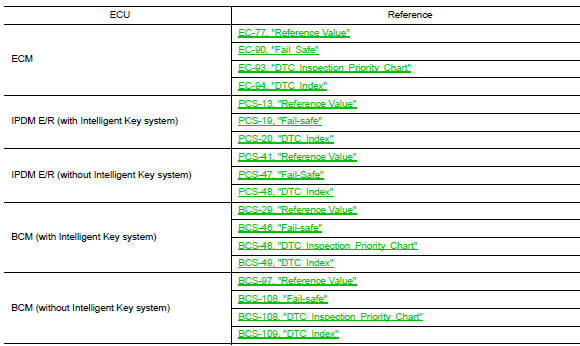

List of ECU Reference

Wiring diagram

System description

COMPONENT PARTS Component Part Location ECM IPDM E/R BCM (view with combination meter removed) A/C auto amp. (view with A/C switch assembly removed) A/C switch assembly A/C ...

Wiring diagram

Manual air conditioning system Wiring Diagram Manual heater system Wiring Diagram ...
