Nissan Sentra Service Manual: VDC/TCS/ABS

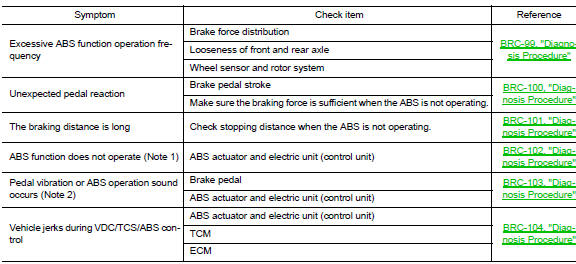

Symptom Table
If ABS warning lamp and SLIP indicator lamp turn ON, perform self-diagnosis.
NOTE:
-
1: The ABS does not operate when the speed is 10 km/h (6 MPH) or less.
-
2: Under the following conditions, ABS is activated and vibration is felt when brake pedal is lightly depressed (just place a foot on it).
However, this is normal.
-
When shifting gears
-
When driving on slippery road
-
During cornering at high speed
-
When passing over bumps or grooves [approximately 50 mm (1.97 in) or more]
-
When pulling away just after starting engine [at approximately 10 km/h (6 MPH) or higher]
Excessive abs function operation
frequency
Diagnosis Procedure
1.CHECK START
Check front and rear brake force distribution using a brake
tester.
Is the inspection result normal?
YES >> GO TO 2
NO >> Check brake system.
2. ...
