Nissan Sentra Owners Manual: Engine compartment
CAUTION
Never use a fuse of a higher or lower amperage rating than specified on the fuse box cover. This could damage the electrical system or cause a fire.
If any electrical equipment does not come on, check for an open fuse.
- Be sure the ignition switch and the headlight switch are OFF.
- Open the engine hood.

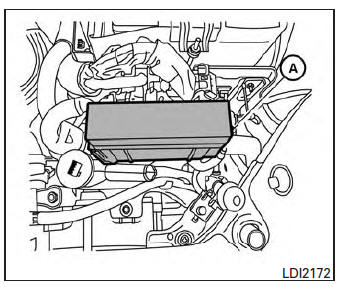

- Remove the fuse box cover by pushing the tab A and lifting the cover up.
- Remove the fuse with the fuse puller, which is located in the center of the fuse block in the passenger compartment.

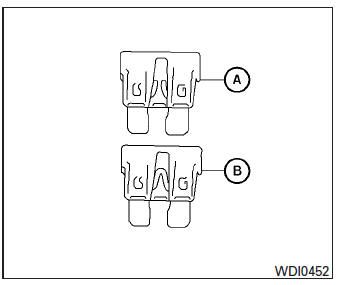

- If the fuse is open A , replace it with a new fuse B .
- If a new fuse also opens, have the electrical system checked and repaired by a NISSAN dealer.
Fusible links
If the electrical equipment does not operate and fuses are in good condition, check the fusible links. If any of these fusible links are melted, replace with only Genuine NISSAN parts.
Fuses
Two types of fuses are used. Type A is used in
the fuse boxes in the engine compartment. Type
B is used in the passenger compartment fuse
box.
Type A fuses are provided as spare fuses. They
a ...
Passenger compartment
CAUTION
Never use a fuse of a higher or lower
amperage rating than specified on the
fuse box cover. This could damage the
electrical system or cause a fire.
If any electrical equipment does n ...
