Nissan Sentra Service Manual: Symptom diagnosis
Interior lighting system symptoms

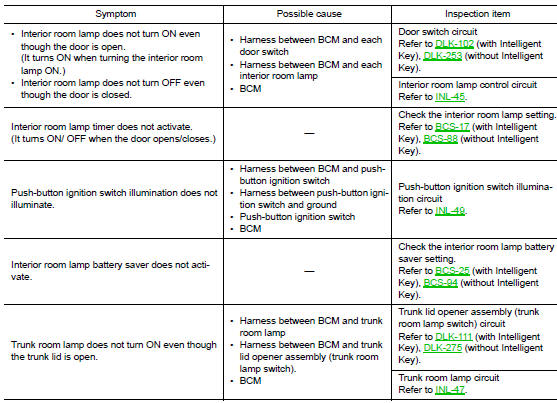

Symptom Table
Caution:
Perform the self-diagnosis with consult before the symptom diagnosis. Perform the trouble diagnosis if any dtc is detected.
Push-button ignition switch illumination circuit
Description
Provides the power supply and the ground to control the push-button ignition
switch illumination.
Component function check
1.Check push-button ignition switch illumination operation ...
