Nissan Sentra Service Manual: G Sensor

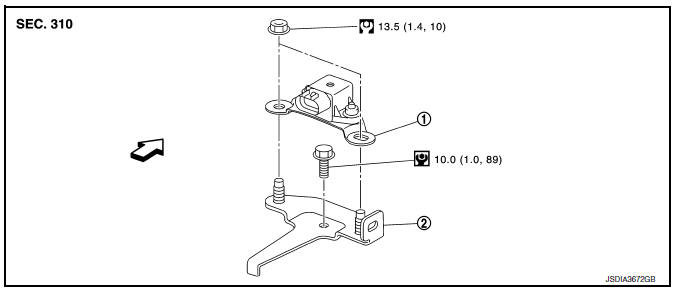

Exploded View
- G sensor
- Bracket
Vehicle front
NВ·m (kg-m, ft-lb)
NВ·m (kg-m, in-lb)
Removal and Installation
WARNING:
Do not leave any objects (screwdrivers, tools, etc.) on the seat during seat repair. It can lead to personal injury if the side air bag module should accidentally deploy.
CAUTION:
- Do not drop or strike G sensor, because it has little tolerance for impact.
- Do not use a power tool and avoid impact.
REMOVAL
- Disconnect the negative and positive battery terminals and wait at least three minutes. Refer to PG-50, "Removal and Installation (Battery)".
- Remove driver seat. Refer to SE-18, "DRIVER SIDE : Removal and Installation - Seat Assembly".
- Remove center pillar lower garnish (left side) and dash side finisher (left side). Refer to INT-27, "CENTER PILLAR LOWER FINISHER : Removal and Installation" (center pillar lower garnish) and INT-26, "DASH SIDE FINISHER : Removal and Installation" (dash side finisher).
- Pull up floor carpet. Refer to INT-35, "Removal and Installation".
- Disconnect G sensor harness connector.
- Remove G sensor.
- Remove bracket.
INSTALLATION
Installation is the reverse order of removal.
Adjustment
ADJUSTMENT AFTER INSTALLATION
Perform “CALIBRATION OF G SENSOR”. Refer to TM-147, "Description".
