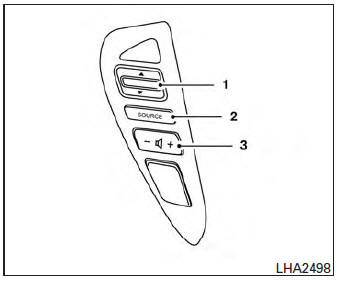

The audio system can be operated using the controls on the steering wheel.
POWER on switch
With the ignition switch in the ACC or ON position, push the SOURCE switch to turn the audio system on.
SOURCE select switch
Push the source select switch to change the mode in the following sequence: AM → FM1 → FM2 → XM1 (satellite radio, if so equipped)→XM2 (satellite radio, if so equipped) →XM3 (satellite radio, if so equipped)→CD*→ USB/iPod®* (if so equipped)→Bluetooth® Audio* → AUX* → AM.
* These modes are only available when compatible media storage is inserted into the device or connected to the system.
Volume control switch
Push the volume control switch to increase or decrease the volume.
Tuning switch
While the display is showing a map or audio screen, tilt the Tuning switch upward or downward to select a station, track, CD or folder. For most audio sources, tilting the switch up/down for more than 1.5 seconds provides a different function than a tilting up/down for less than 1.5 seconds.
AM and FM:
XM/SXM (if so equipped):
iPod® (if so equipped):
CD:
USB (if so equipped):
Bluetooth® Audio (if so equipped):
Pandora® Audio (if so equipped):
