Nissan Sentra Owners Manual: Slide front armrest (if so equipped)
To adjust the front armrest, take the leather cover and slide it to the front or rear.
Console box
Console box
To open the console box, press in on the lever 1
and raise the lid 2 .
To close, push the lid down until the lock latches.
...

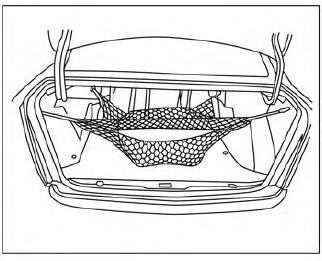

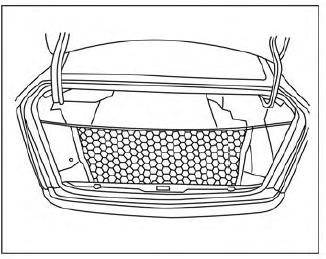

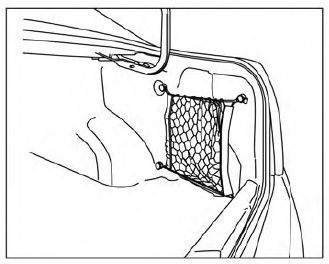

Cargo net (if so equipped)
WARNING
Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. In a sudden stop or collision,
unsecured cargo could cause personal
injur ...
