Nissan Sentra Owners Manual: Console box
Console box

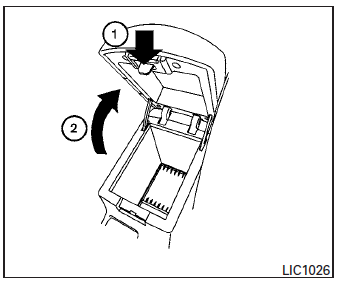

To open the console box, press in on the lever 1 and raise the lid 2 .
To close, push the lid down until the lock latches.
Glove box
Open the glove box by pulling the handle.
WARNINGKeep glove box lid closed while driving to
help prevent injury in an accident or a
sudden stop.
...

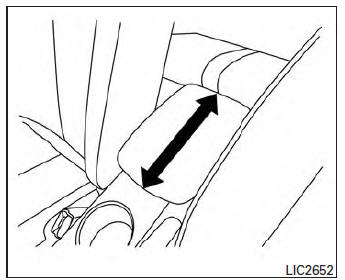

Slide front armrest (if so equipped)
To adjust the front armrest, take the leather cover
and slide it to the front or rear.
...
