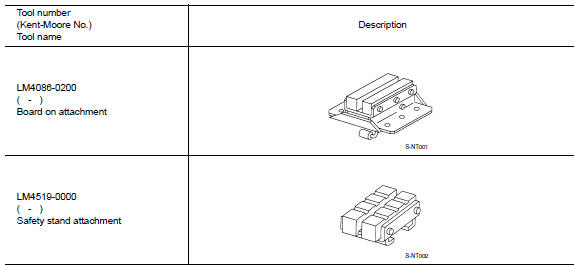

Nissan Sentra Service Manual: Special Service Tool
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
CAUTION:
- Every time the vehicle is lifted up, maintain the complete vehicle curb condition.
- Since the vehicle's center of gravity changes when removing main parts on the front side (engine, transmission, suspension etc.), support a jack up point on the rear side garage jack with a transmission jack or equivalent.
- Since the vehicle's center of gravity changes when removing main parts on the rear side (rear axle, suspension, etc.), support a jack up point on the front side garage jack with a transmission jack or equivalent.
- Be careful not to smash or do anything that would affect piping parts.
Lifting point
...
Garage Jack and Safety Stand and 2-Pole Lift
WARNING:
Park the vehicle on a level surface when using the jack. Make
sure to avoid damaging pipes, tubes,
etc. under the vehicle.
Never get under the vehicle while it is supported only by ...
