Nissan Sentra Service Manual: Service data and specifications (SDS)

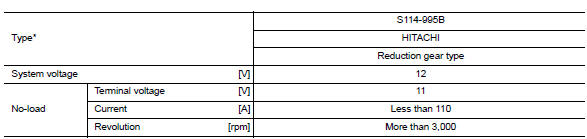

Starter Motor
*: Always check with the Parts Department for the latest parts information.
Removal and installation
Starter motor
Exploded View
“S” terminal harness
“B” terminal harness
Starter motor
Cylinder block
Removal and Installation
NOTE:
When removing components such ...
