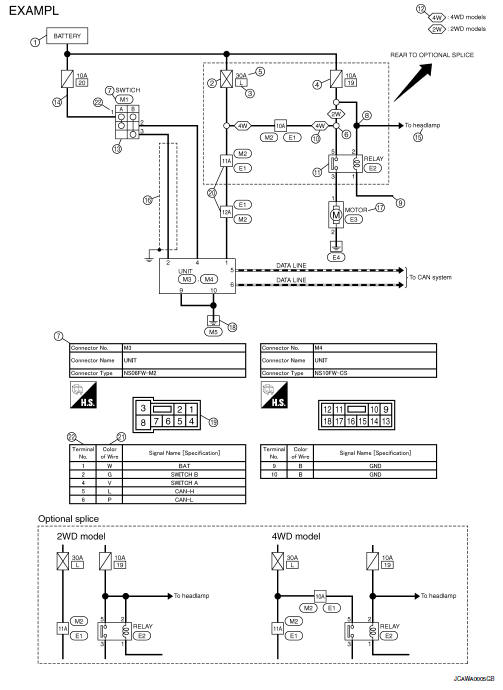

Nissan Sentra Service Manual: Sample/wiring diagram -example-
- For detail, refer to following GI-11, "Description".
Connector symbols
Most of connector symbols in wiring diagrams are shown from the terminal
side.
Connector symbols shown from the terminal side are enclosed by
a single line and followed by the direction mark.
...
Description
Number
Item
Description
1
Power supply
This means the power supply of fusible link or fuse.
2
Fusible link
“X” means the ...
