Nissan Sentra Service Manual: Rear door finisher

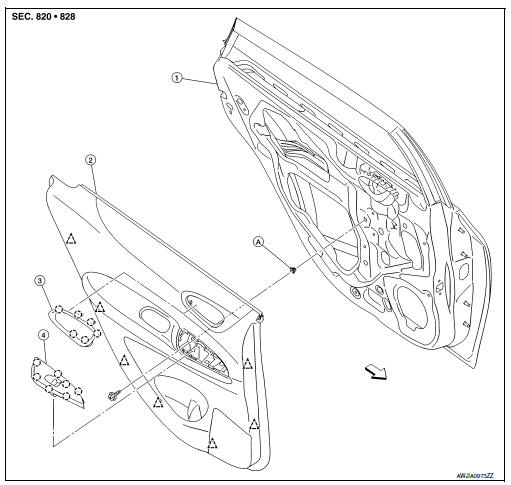

Exploded View
- Rear door panel
- Rear door finisher
- Inside door handle escutcheon
- Rear power window switch finisher
- Grommet
Clip
Pawl
Front
Removal and Installation
CAUTION:
- When removing, always use a suitable tool that is made of plastic to prevent damage to the parts.
- Do not damage the door panel.
REMOVAL
- Remove inside door handle escutcheon.
- Apply protective tape (A) to protect the component from damage as shown.
- Insert a suitable tool (A) as shown between inside door handle escutcheon and inside door handle.
- With suitable tool (A) in position, insert a second suitable tool (B) as shown, then release pawl as shown.
Pawl
- Pull upward on the inside door handle escutcheon as shown to release the pawls on the upper portion of inside door handle escutcheon.
Pawl
- Press down on the inside door handle escutcheon as shown to release the pawls on the lower portion of inside door handle escutcheon.
Pawl
- Insert a suitable tool (A) as shown to release the remaining pawl and remove.
Pawl
- Remove rear power window switch finisher. Refer to PWC-72, "Removal and Installation".
- Remove rear door finisher.
- Remove rear door finisher screw (A).
- Apply protective tape (A) to protect the component from damage as shown.
- Release rear door finisher clips using a suitable tool (A) as shown.
Clip
Remove rear door finisher as shown.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
When installing, check that clips are accurately aligned with the holes on the door panel, then press in.
