Nissan Sentra Service Manual: Preparation

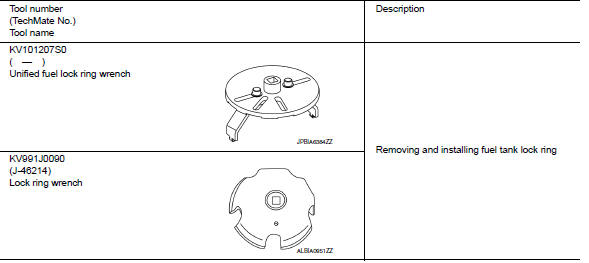

Special Service Tool
The actual shape of the tools may differ from those illustrated here.

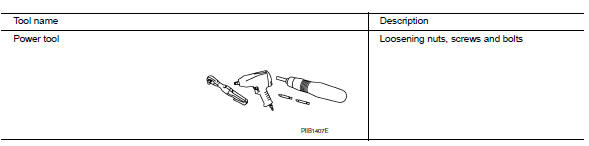

Commercial Service Tool
General Precaution
WARNING:
When replacing fuel line parts, be sure to observe the following.
Put a “CAUTION: FLAMMABLE” sign in the work area.
Be sure to work in a well ventilated area and have a CO2 f ...
Periodic maintenance
FUEL SYSTEM
Inspection
Inspect fuel lines, fuel filler cap, and fuel tank for improper attachment,
leakage, cracks, damage, loose connections, chafing or deterioration.
Engine
Fuel line
Fu ...
