Nissan Sentra Service Manual: Precaution for Liquid Gasket
Removal of liquid gasket
- After removing the bolts and nuts, separate the mating surface and remove the old liquid gasket using tool.
Tool number : kv10111100 (j-37228)
Caution:
Do not damage the mating surfaces.
- Tap the seal cutter to insert it (1).
- In areas where the tool is difficult to use, lightly tap to slide it (2).
Liquid gasket application procedure

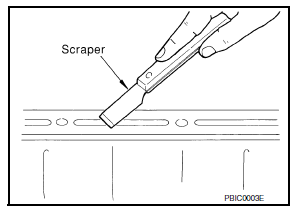

- Remove the old liquid gasket adhering to the gasket application surface and the mating surface using suitable tool.
- Remove the liquid gasket completely from the groove of the liquid gasket application surface, bolts, and bolt holes.
- Thoroughly clean the mating surfaces and remove adhering moisture, grease and foreign material.
- Attach the liquid gasket tube to the suitable tool.
Use genuine rtv silicone sealant or equivalent. Refer to gi-21, "recommended chemical products and sealants".
- Apply the liquid gasket without breaks to the specified location with the specified dimensions.
- Attach the liquid gasket tube to the suitable tool.
Use genuine rtv silicone sealant or equivalent. Refer to gi-21, "recommended chemical products and sealants".
- Apply the liquid gasket without breaks to the specified location with the specified dimensions.
- If there is a groove for the liquid gasket application, apply the liquid gasket to the groove.
- Normally apply the liquid gasket on the inside edge of the bolt holes. Also apply to the outside edge of the bolt holes when specified in the procedure.
- Within five minutes of liquid gasket application, install the mating component.
- If the liquid gasket protrudes, wipe it off immediately.
- Do not retighten after the installation.
- Wait 30 minutes or more after installation before refilling the engine with oil or coolant.
Caution:
If there are more specific instructions in the procedures contained in this manual concerning liquid gasket application, observe them.
