Nissan Sentra Service Manual: P0713 Transmission fluid temperature sensor A

Nissan Sentra Service Manual / Transmission & driveline / Transaxle & transmission / CVT: RE0F11A / P0713 Transmission fluid temperature sensor A

DTC Logic

DTC DETECTION LOGIC

DTC

 CONSULT screen terms (Trouble diagnosis content)

 DTC detection condition

 Possible causes
P0713 FLUID TEMP SENSOR A (Transmission Fluid Temperature Sensor A Circuit High) The CVT fluid temperature identified by the TCM is −40В°C (−40В°F) or less continuously for 5 seconds or more under the following diagnosis conditions:

Diagnosis conditions

  • Ignition switch: ON
  • Vehicle speed: More than 10 km/h (7 MPH)
  • TCM power supply voltage: More than 11 V
  • Harness or connector (CVT fluid temperature sensor circuit is open or shorted to power supply)
  • CVT fluid temperature sensor

DTC CONFIRMATION PROCEDURE

1.PREPARATION BEFORE WORK

If another “DTC CONFIRMATION PROCEDURE” occurs just before, turn ignition switch OFF and wait for at least 10 seconds, then perform the next test.

>> GO TO 2.

2.PERFORM DTC CONFIRMATION PROCEDURE

  1. Start the engine.
  2. Maintain the following condition for 10 seconds or more.

Vehicle speed : 20 km/h (12 MPH) or more

  1. Stop the vehicle.
  2. Check the first trip DTC.

Is “P0713” detected? YES >> Go to TM-176, "Diagnosis Procedure".

NO >> INSPECTION END

Diagnosis Procedure

1.CHECK CIRCUIT BETWEEN TCM AND CVT UNIT (PART 1)

  1. Turn ignition switch OFF.
  2. Disconnect TCM connector and CVT unit connector.
  3. Check continuity between TCM harness connector terminals and CVT unit harness connector terminals.

Is the inspection result normal?


Is the inspection result normal? YES >> GO TO 2.

NO >> Repair or replace malfunctioning part.

2.CHECK CIRCUIT BETWEEN TCM AND CVT UNIT (PART 2)

  1. Turn ignition switch ON.
  2. Check voltage between TCM harness connector terminal and ground.

Is the inspection result normal?


Is the inspection result normal? YES >> GO TO 3.

NO >> Repair or replace malfunctioning part.

3.CHECK CVT FLUID TEMPERATURE SENSOR

Check CVT fluid temperature sensor. Refer to TM-177, "Component Inspection".

Is the inspection result normal? YES >> Check intermittent incident. Refer to GI-39, "Intermittent Incident".

NO >> Repair or replace malfunctioning parts.

Component Inspection

1.CHECK CVT FLUID TEMPERATURE SENSOR

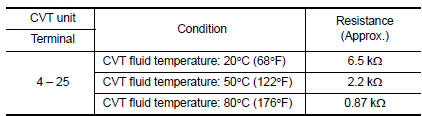

Check resistance between CVT unit connector terminals.

Is the inspection result normal?


Is the inspection result normal? YES >> INSPECTION END

NO >> There is a malfunction of CVT fluid temperature sensor. Replace transaxle assembly. Refer to TM-283, "Removal and Installation".
