Nissan Sentra Service Manual: Latch system for children

Nissan Sentra Service Manual / Restraints / Seat belt / Removal and installation / Latch system for children

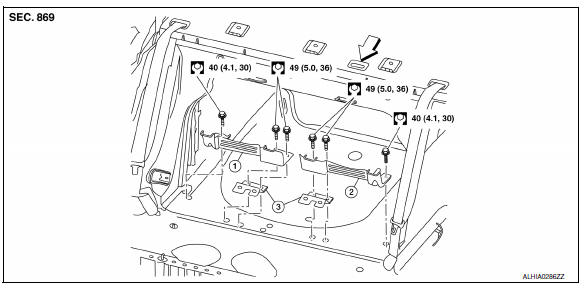

Exploded View

LATCH bracket (RH)
LATCH bracket (LH)
Seat belt buckle anchor bracket

Removal and Installation Front

Removal and Installation

REMOVAL

Remove the rear seat cushion assembly. Refer to SE-23, "Removal and Installation - Seat Cushion Assembly"
Remove the rear seatback assembly. Refer to SE-23, "Removal and Installation - 60:40 Split Seatback".
Remove the LATCH bracket bolts and the LATCH bracket.

INSTALLATION

Installation is in the reverse order of removal.

Always perform an inspection after repair to be sure the system is functioning within specifications. Refer to SB-5, "Inspection".
Tighten the LATCH bracket bolts to specification. Refer to SB-13, "Exploded View".
